AMPINVT 80A MPPT Solar Charge Controller — Auto 12/24/48V, 1100W-4500W PV Input, Lithium Ready

Optimize Solar Harvest with the AMPINVT 80A MPPT Controller

Engineered for versatile 12/24/48V systems, the AMPINVT 80A MPPT solar charge controller automatically identifies your battery voltage and adapts its charging profile. This compact regulator acts as the brain of your solar setup, smoothing energy flow from panels to battery banks and protecting the system from overcurrent and overvoltage scenarios.

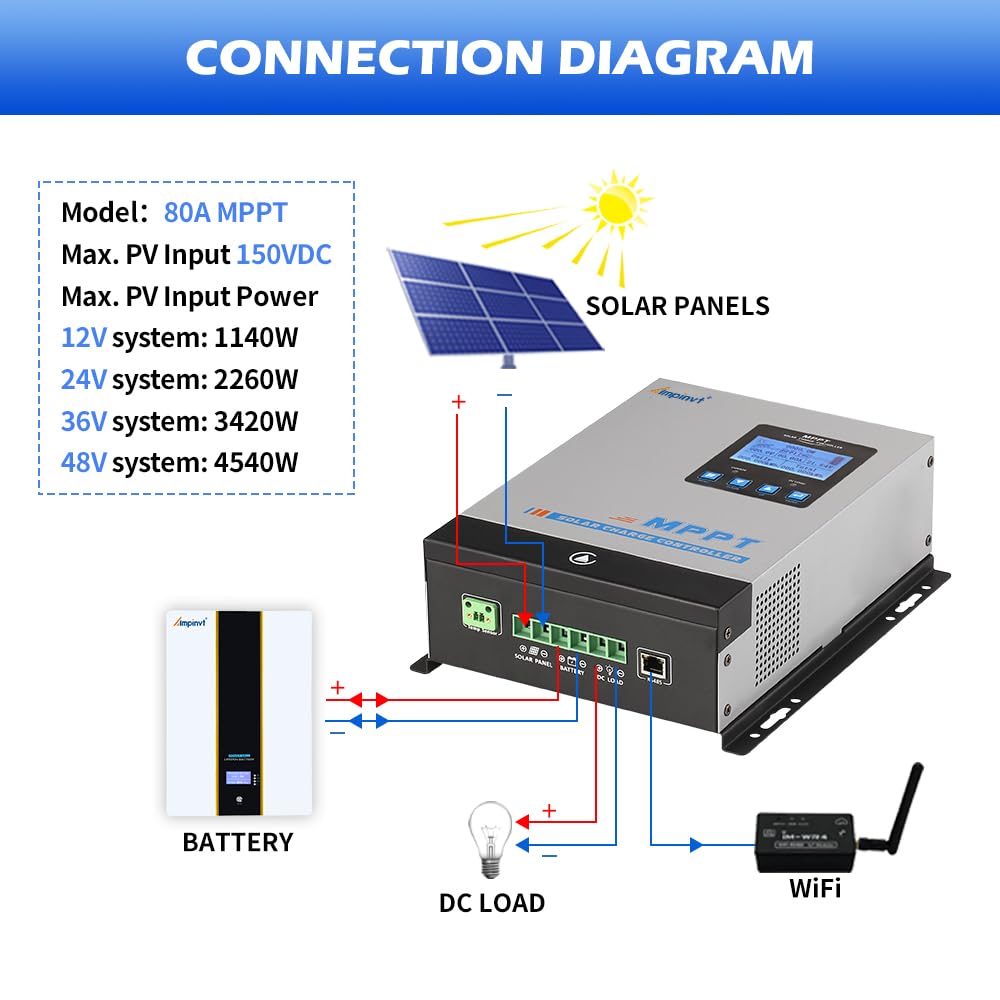

Designed to handle high PV input power across different voltage classes, it supports a wide range of panels and array configurations. For 12V installations, it accommodates up to about 1140W; for 24V, up to roughly 2260W; for 36V, about 3420W; and for 48V, up to around 4540W. The device accepts up to 150V PV input and is built to operate within MPPT voltage bands: 12V: DC18–DC80V, 24V: DC30–DC100V, 48V: DC65–DC150V. These specs enable flexible, efficient power conversion across a variety of solar arrays.

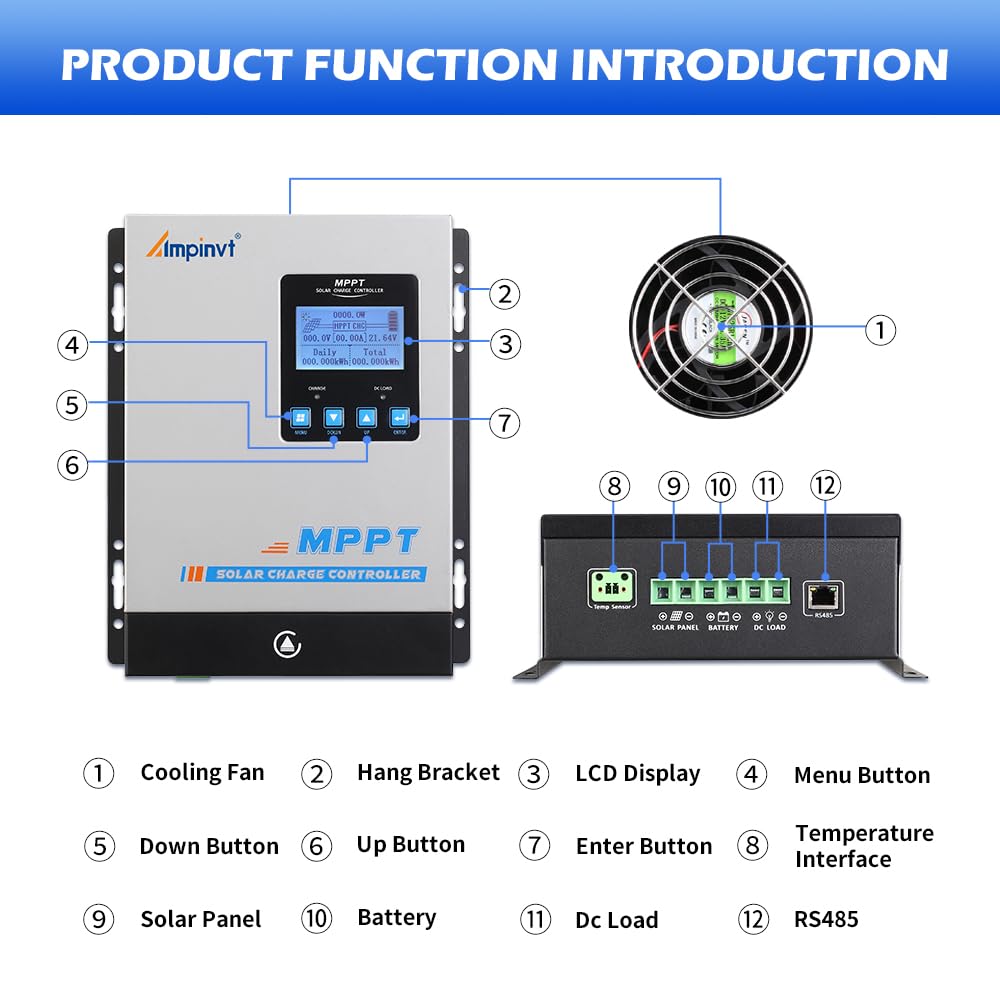

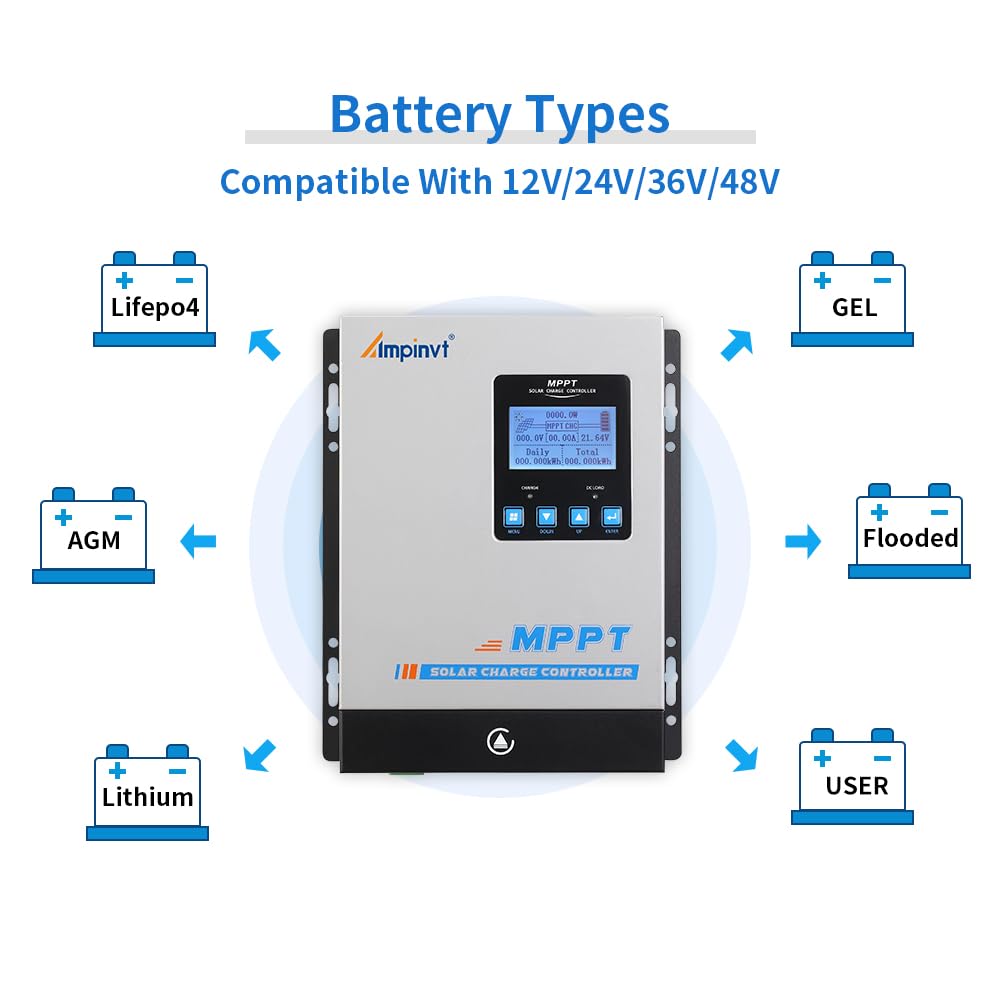

Key charging capabilities include compatibility with four lead-acid chemistries (Sealed, AGM, Gel, Flooded) and user-defined lithium batteries, giving you options for energy storage that align with your preference and budget. The LCD display makes it easy to read current operating data at a glance, with real-time energy statistics and a clear daily power curve view. This makes it straightforward to monitor generation and adjust use as needed.

Two practical benefit groups stand out:

• Performance and protection: The controller tracks maximum power with a rate of at least 99% and maintains conversion efficiency above 98%, helping you extract more energy from your sunlit hours without stressing the battery bank.
• Flexibility and control: Auto-identification of voltage, multiple charging modes, and optional Wi-FI remote monitoring provide practical options for on-the-go RV installations, home solar setups, or industrial monitoring, all while keeping your system user-friendly and adaptable.

Remote monitoring via the APC ecosystem is available with an optional add-on, offering real-time wireless insight for iOS and Android devices. This is convenient for checking performance, reviewing energy trends, and configuring settings from a distance. While the app and device setup are straightforward, please note that the Wi-Fi monitoring feature requires an additional purchase.

In short, the AMPINVT 80A MPPT Controller is designed to be a capable, flexible partner in a growing solar system—helping you optimize energy capture, manage diverse battery chemistries, and stay informed through accessible data while leaving room for future expansion.
