Galannovo 748-0376E Blade Adapter Kit for Walk-Behind Mowers – 25mm Ø, Replaces 748-0376 Series

Galannovo 748-0376E Blade Adapter Kit — 25mm Ø for Walk-Behind Mowers

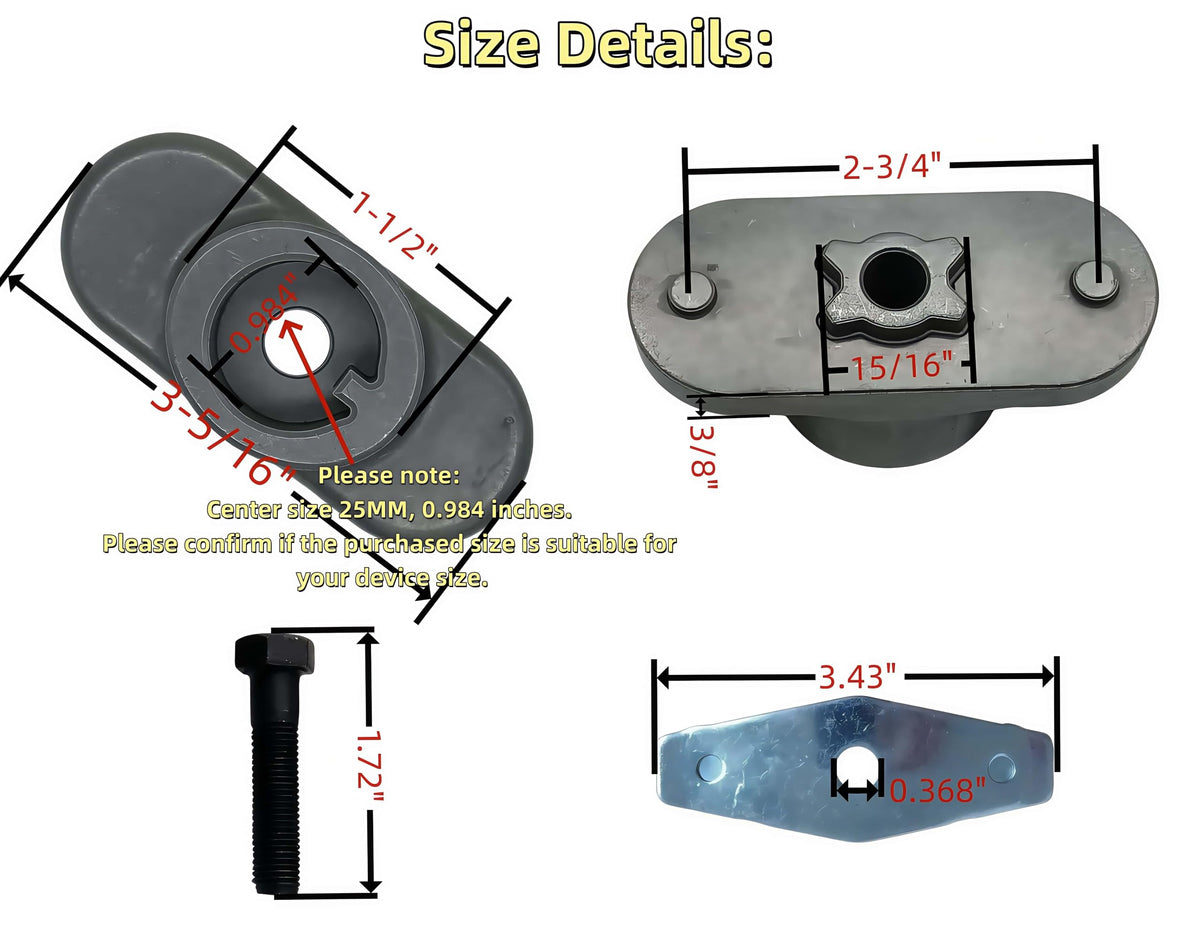

Designed for push mowers that use a 7/8 in. diameter bow-tie blade mounting, this Galannovo kit helps you adapt your blade setup for different mowing tasks. The adapter height is 1.19 in., with an inner bore of 7/8 in., and it accommodates a 25mm diameter blade interface. The kit includes a dedicated adapter (MTD 748-0376E), a hex bolt, and a bell washer, delivering a complete package that supports straightforward blade changes. While it does not guarantee uniform results across every mower, it is built to support reliable alignment and changeovers when used with compatible models.

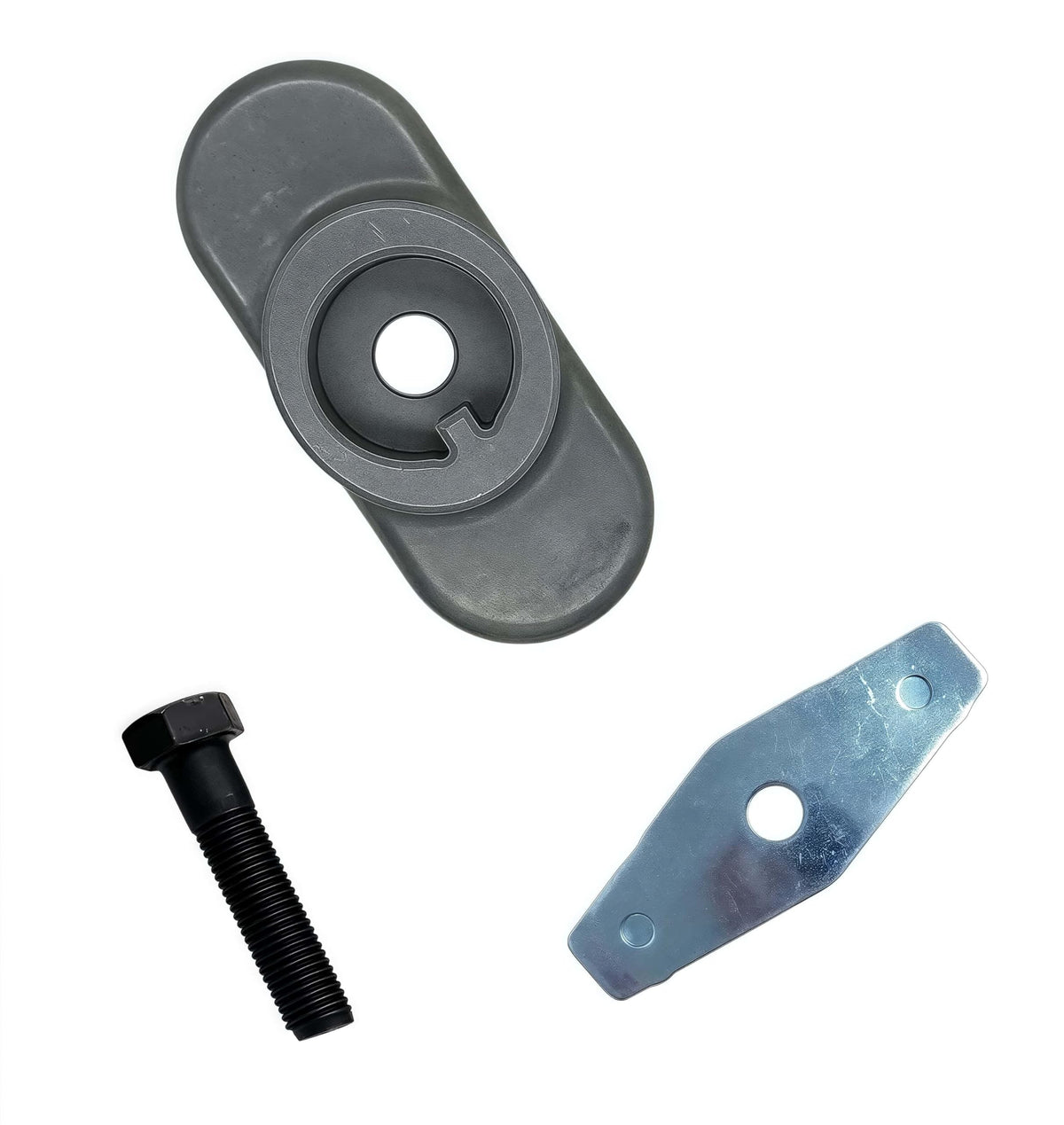

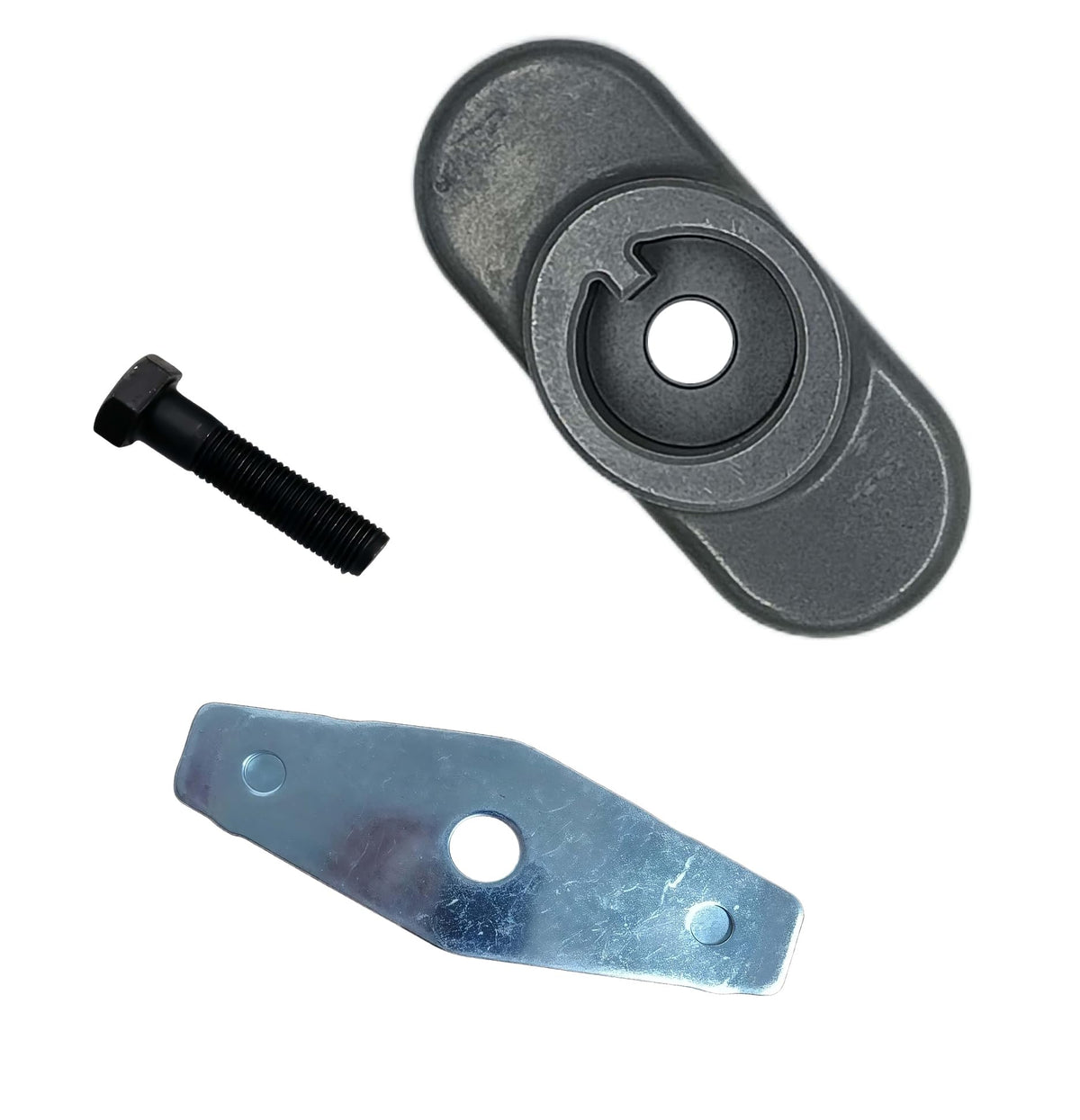

What’s included

• Adapter compatible with the MTD 748-0376E family
• Hex bolt for secure mounting
• Bell washer to aid proper clamping

Broad compatibility at a glance

The kit is designed to fit a wide range of walk-behind mowers. It is commonly used with models from popular brands including MTD, Murray, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Columbia, among others. The product is compatible with many 1997 to 2015 era walk-behind mowers, helping you align blade assemblies that use the bow-tie pattern.

Use cases and benefits

With the adapter, you can switch between blade configurations to support different lawn tasks such as mulching or dethatching, depending on your mower and blade type. The design emphasizes precise alignment, which can contribute to a smoother cut and easier maintenance. Consider the kit as a versatile upgrade that may assist you adapt to different yard conditions and blade options.

Installation tips

1. Power off the mower and remove the spark plug wire for safety.
2. Remove the current blade and mounting hardware if present.
3. Align the new adapter with the blade mounting pattern and inner bore.
4. Secure with the hex bolt and bell washer, then tighten to the recommended torque.
5. Reinstall the blade and test on a small, controlled pass.

Why choose Galannovo

Galannovo designs practical parts that aim to simplify routine maintenance. This adapter kit provides a straightforward path to adapting your blade setup while emphasizing compatibility across many popular models.
