KINTLE Steering Gear Kit 617-04094 for MTD / Troy-Bilt / Craftsman — 61704094 & 948-0389 Compatible

Overview

Restore confident control with the KINTLE Steering Gear Kit, crafted to replace worn steering components on select MTD, Troy-Bilt, and Craftsman riders. This single kit brings together essential parts that typically wear over time, helping you address steering play and stiffness without a full chassis overhaul.

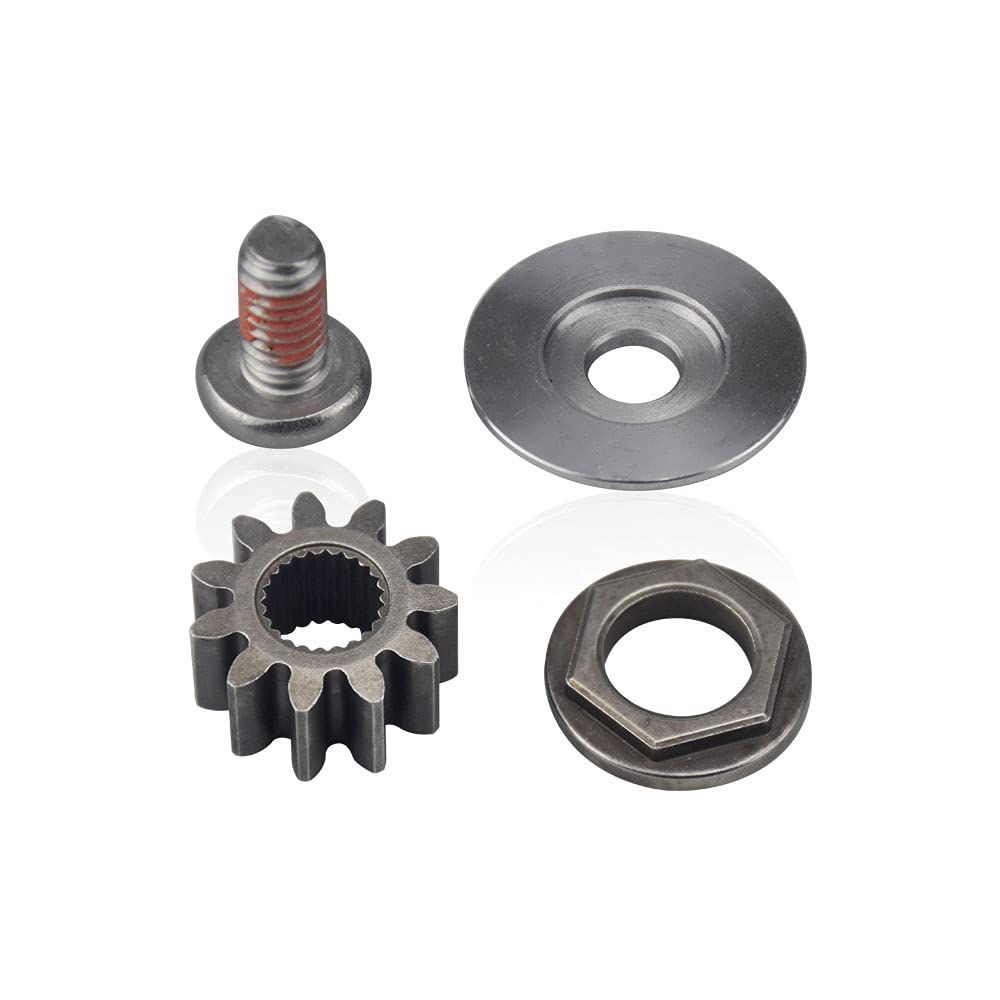

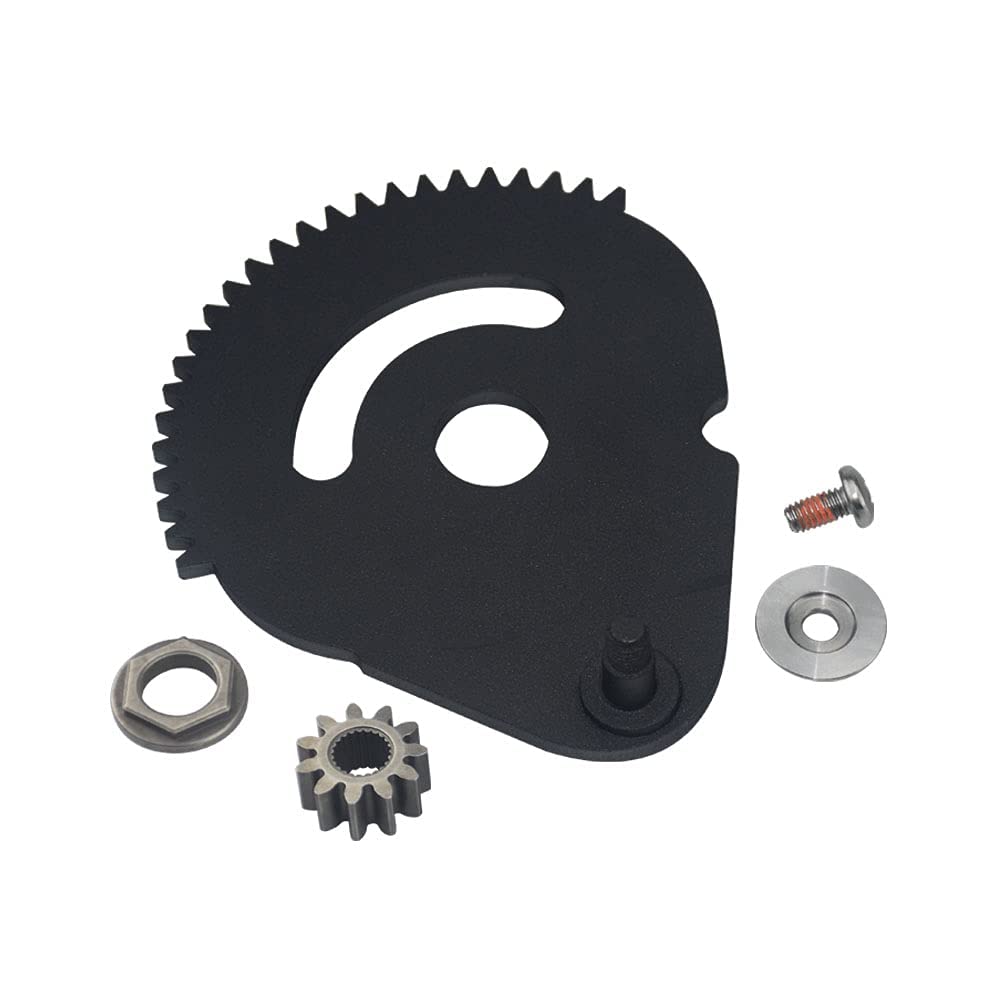

What’s included

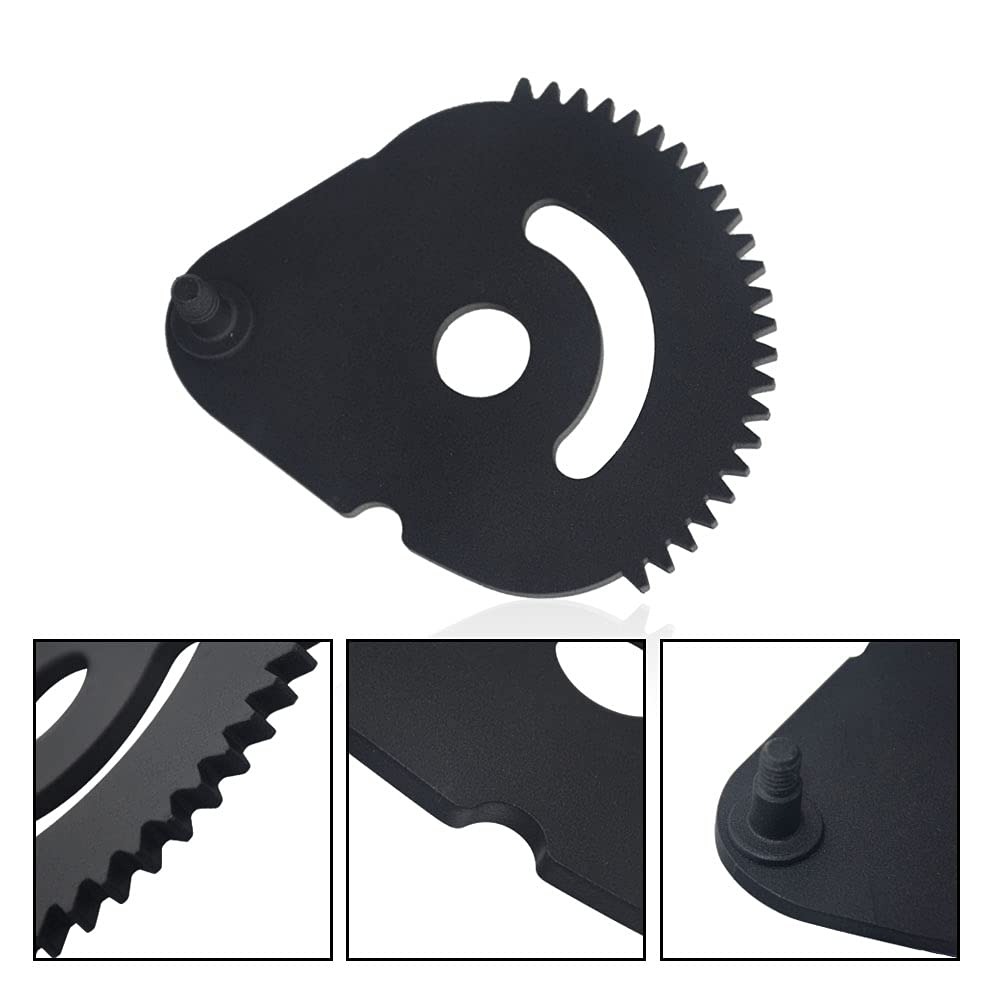

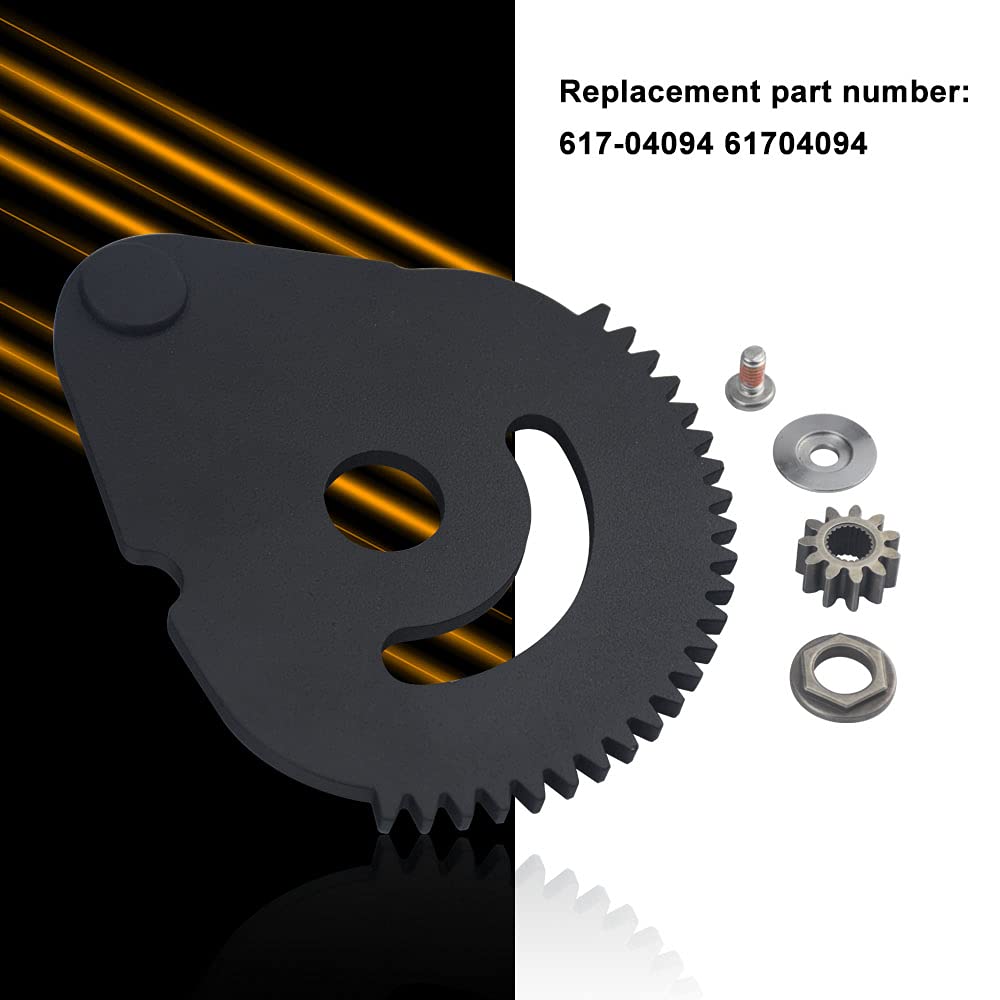

• Steering gear assembly (replaces 617-04094 / 61704094)
• Durable bushing (replaces 941-0656A / 741-0656A)
• Steering rod cap and screw (replaces 948-0389 / 731-1309)

Compatibility and fit

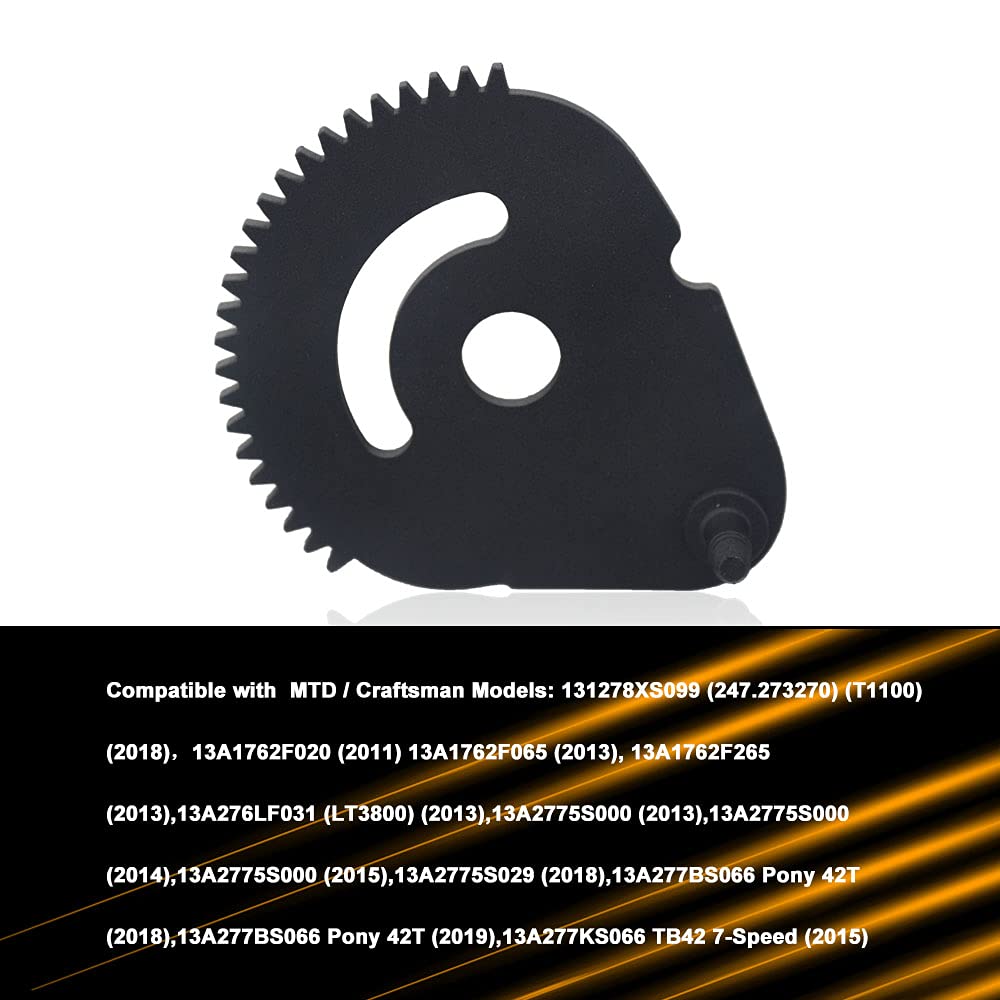

The kit is designed to work with a broad range of MTD family models across multiple years, and it also covers various Troy-Bilt and Craftsman tractors. In addition to the specific Craftsman models listed in the data, the kit supports brands and units commonly paired with lawn-era equipment from MTD, Troy-Bilt, Craftsman, Yard Man, Yard Machines, Husky, and Murray.

• Brands: MTD, Troy-Bilt, Craftsman, Yard Man, Yard Machines, Husky, Murray

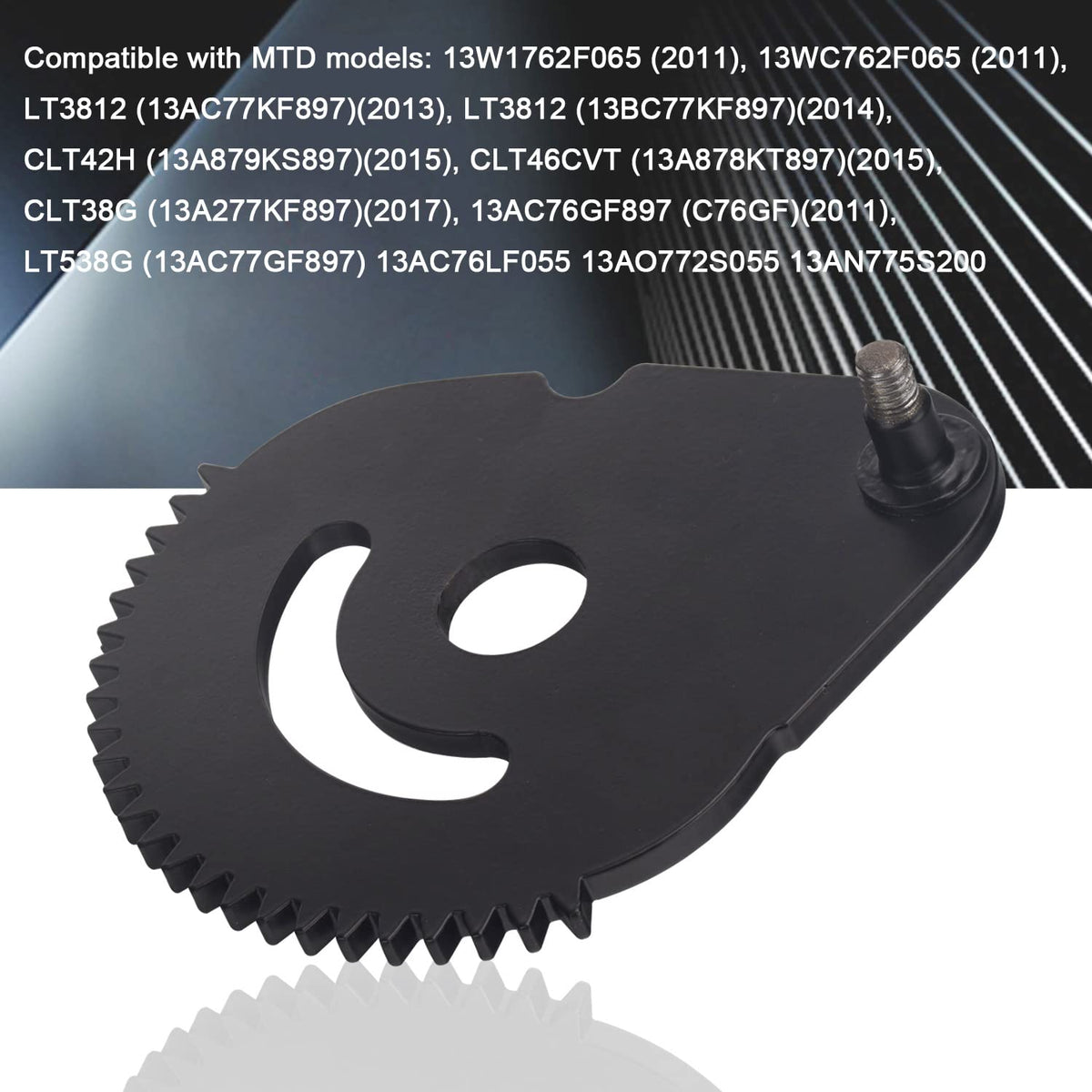

• Selected model examples include LT3812, LT538G, 13W1762F065, CLT46CVT, 247203700-series, and more

Key specs

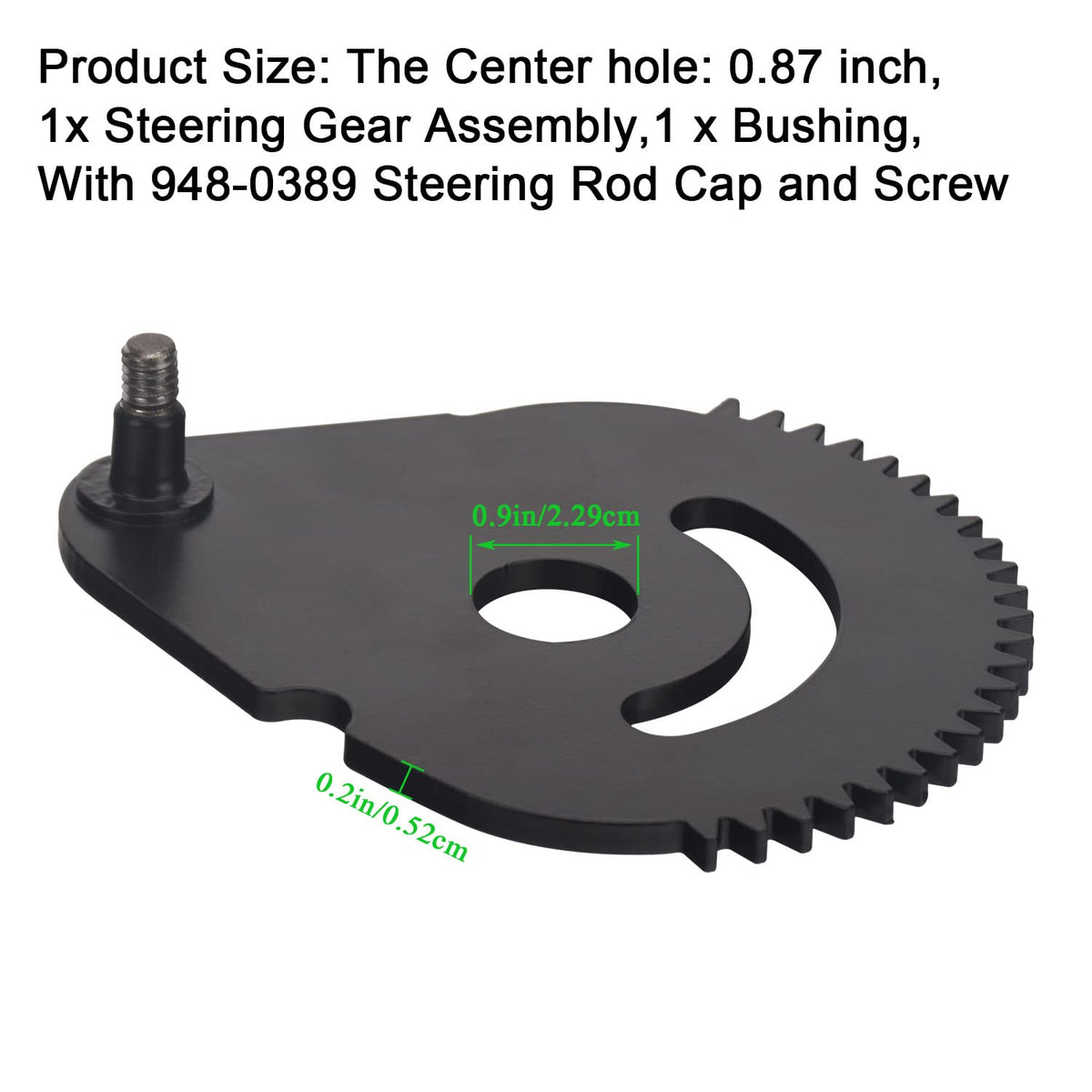

Center hole diameter is approximately 0.87 inches. The kit comprises one steering gear assembly, one bushing, and the steering rod cap with screw (948-0389).

Why consider this kit

• Potential to restore steering feel by replacing worn parts, reducing play
• Cost-effective option that consolidates multiple components into a single kit
• Simple replacement approach designed to fit a wide range of compatible models

Real-world use scenarios

Ideal for mid-life lawn tractors or riders showing stiff steering, wandering behavior, or looseness at the helm. The kit’s broad compatibility makes it a practical choice for DIY maintenance or routine shop repairs, helping you get back to mowing with more predictability.

Notes on installation and care

Follow standard safety steps and refer to your machine’s service manual for torque specs and procedures. The included parts are intended to align with typical mounting points on compatible frames, offering a straightforward replacement path.
