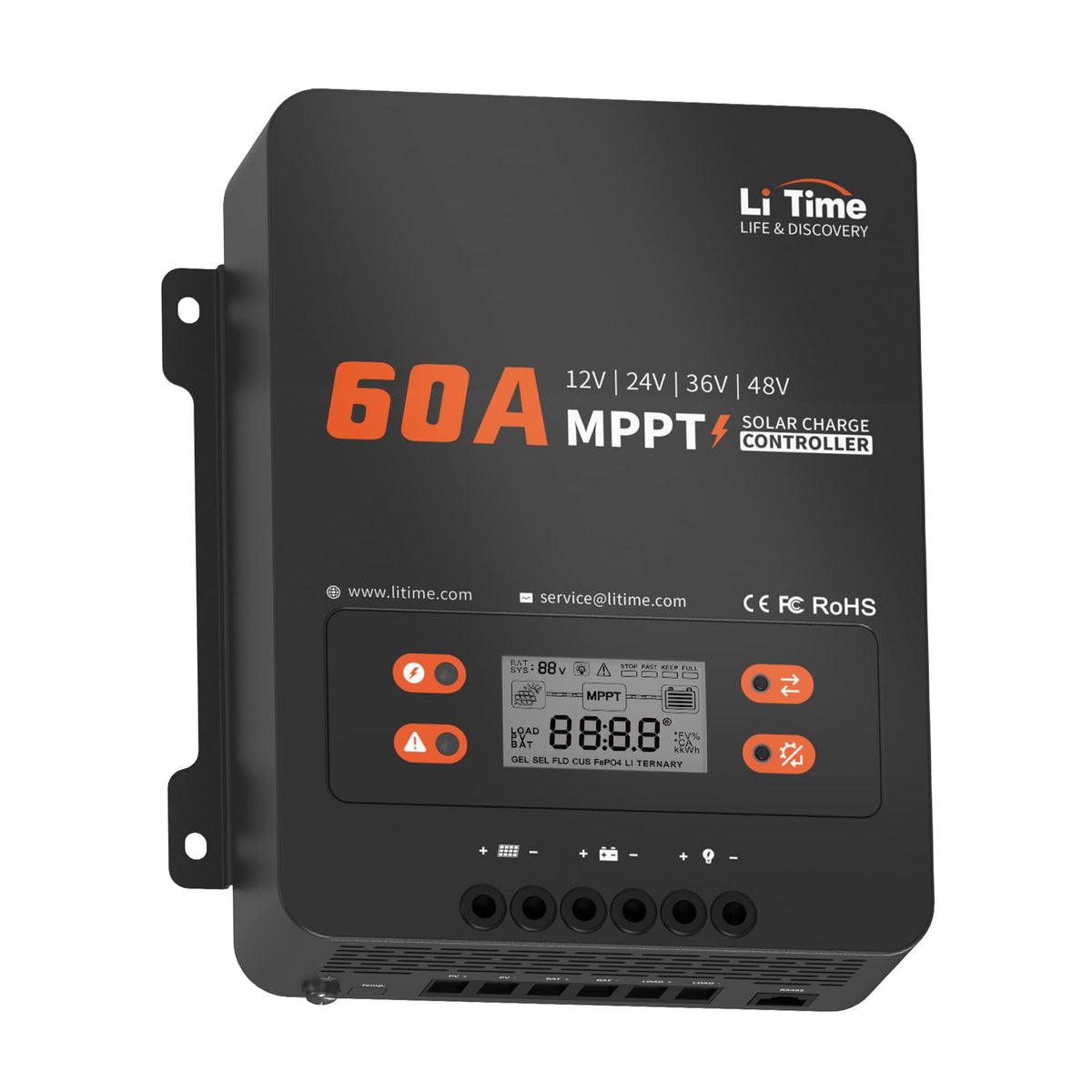

Litime 60A MPPT Solar Charge Controller – 12/24/36/48V Auto, LCD Display, 200V PV, LiFePO4 & Lead-Acid

LiTime 60A MPPT Solar Charge Controller — No Bluetooth, Clear LCD, and Robust Protection

The LiTime 60A MPPT Solar Charge Controller is designed for dependable off‑grid charging with LiFePO4 or lead‑acid batteries. Built to adapt to your system, it auto‑detects voltage and supports multiple chemistries without relying on built‑in Bluetooth. The result is a compact regulator that helps you manage energy more smoothly, whether you are powering a cabin, a boat, or a small workshop.

Smart MPPT for Maximum Power Harvest

With advanced Maximum Power Point Tracking, this controller continuously seeks the best operating point for your array. You can expect a tracking efficiency of at least 99% and a peak conversion efficiency up to 96%, which translates to more energy reaching your battery during peak sun hours.

• Accurate MPPT tracking reduces wasted input as sunlight fluctuates, helping you get the most out of your panels.
• High conversion efficiency supports faster charging in constrained space or limited daylight.

Flexible System Voltages and Battery Support

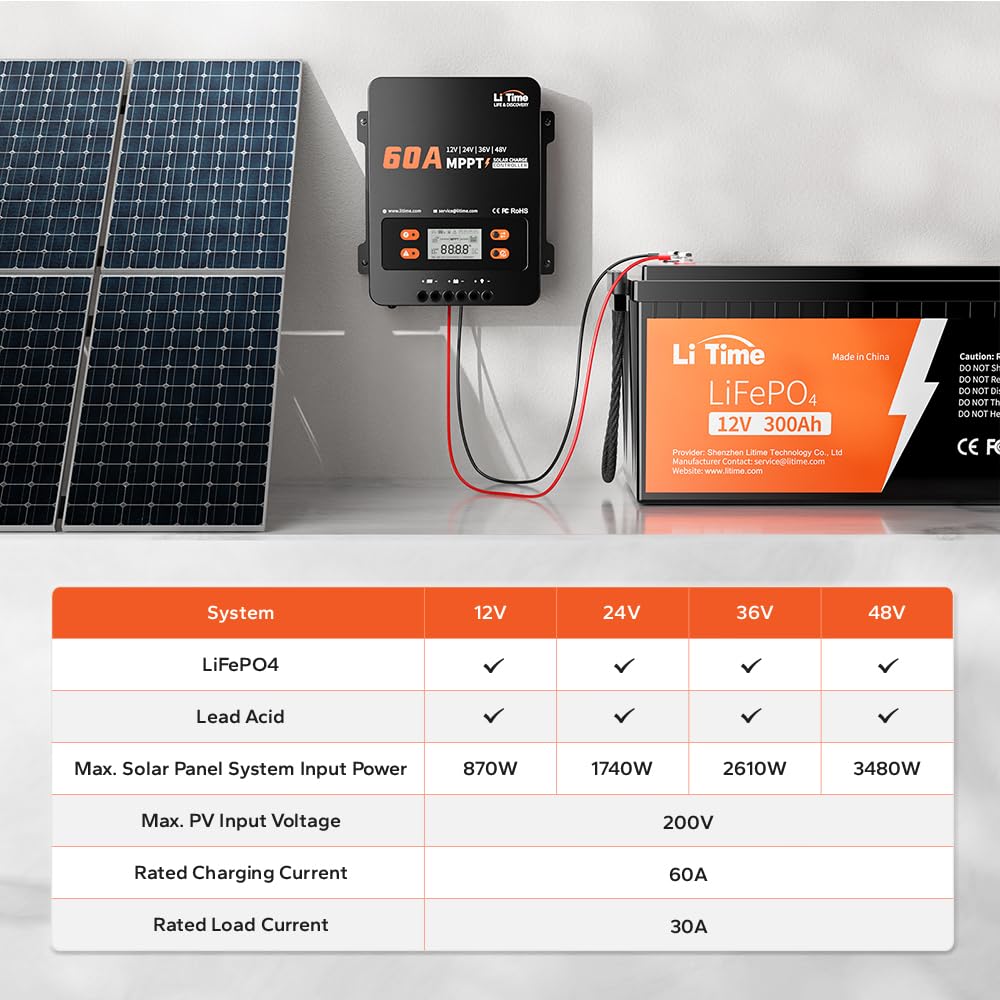

Choose from LiFePO4 charging mode for LiFePO4 batteries, or adapt parameters for Lead-Acid systems. The controller provides 12V/24V/48V for LiFePO4 and 12V/24V/36V/48V Auto for Lead‑Acid, covering a wide range of configurations without extensive rewiring.

• LiFePO4 compatibility offers safe, stable cycling for modern battery packs.
• Lead‑acid support allows reuse of established batteries with minimal setup changes.

Intuitive Interface and Clear Feedback

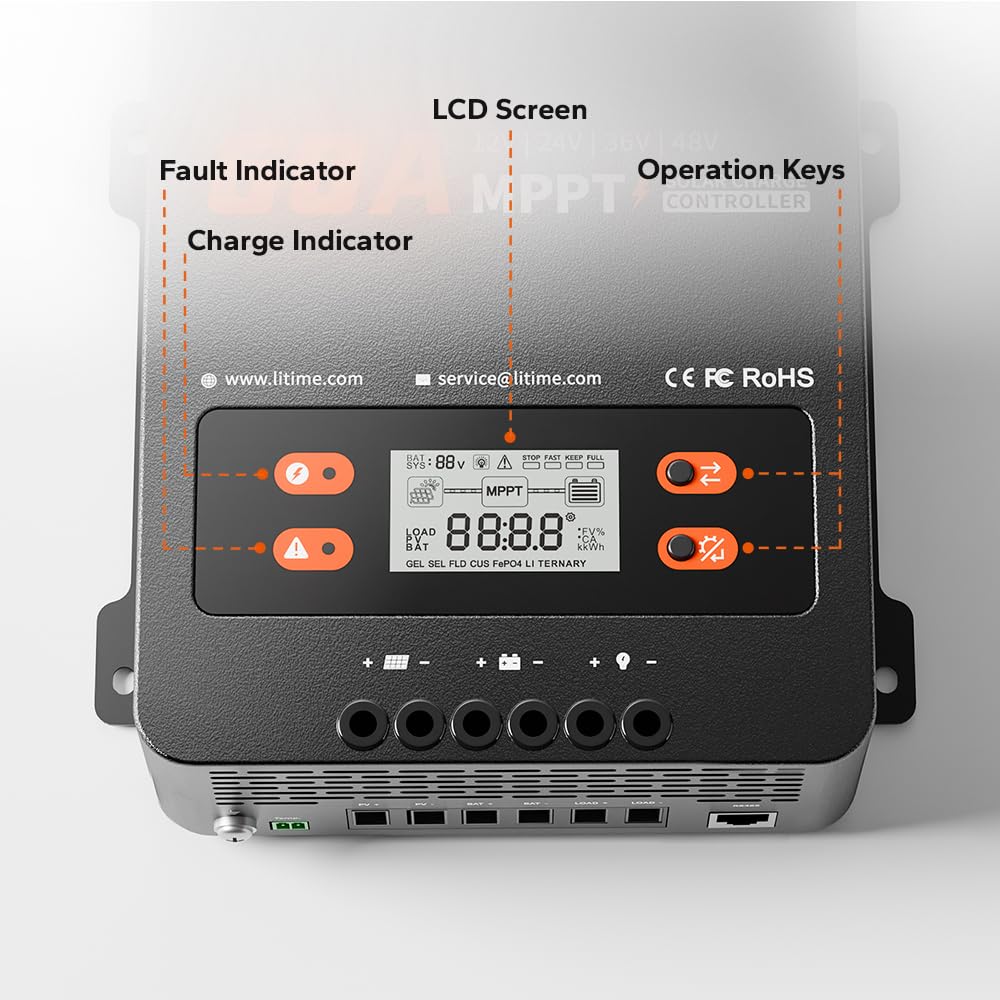

An LCD screen paired with two control buttons makes parameter adjustments and status checks straightforward. Charge indicators reveal charging progress, while fault indicators help you identify system issues quickly, enabling timely maintenance.

Heat Management and Protection

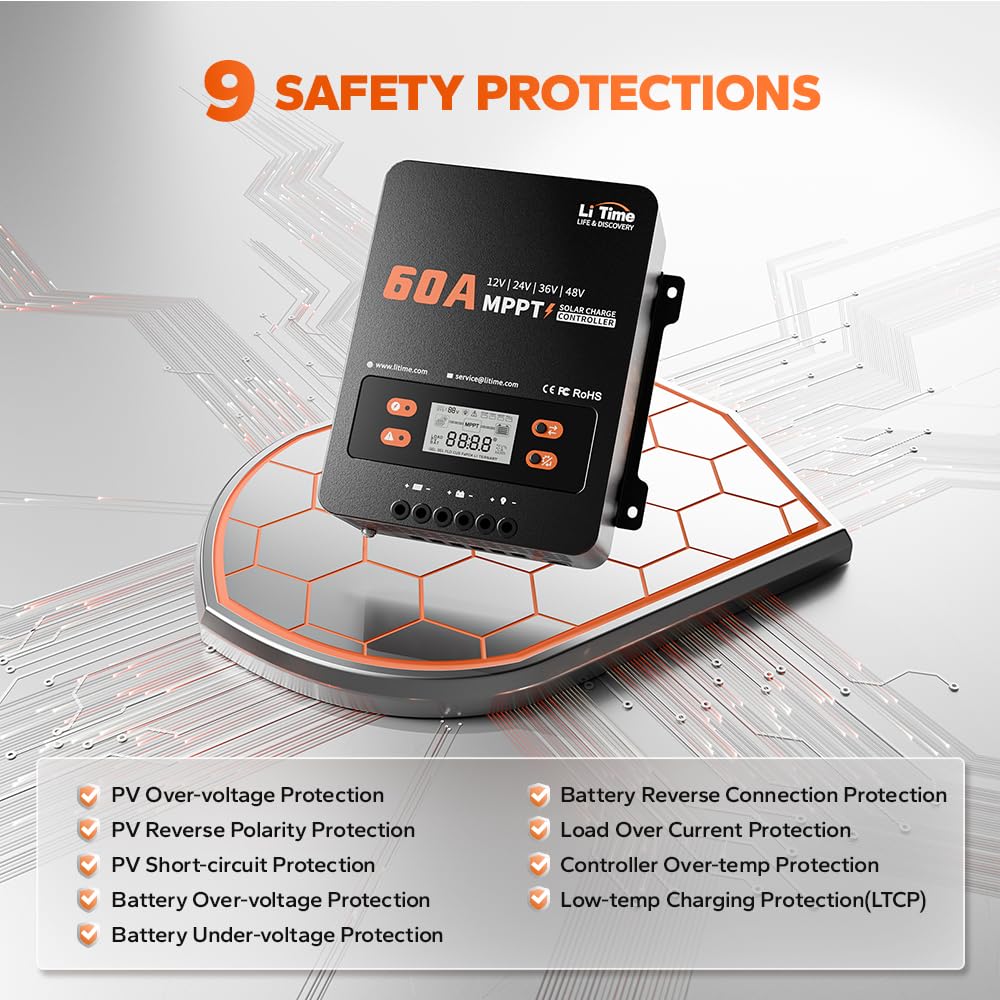

The unit features a sheet‑metal shell with dual forced cooling, a bottom heat sink, and a top fan. This cooling design helps the regulator stay within safe temperatures under load. Built‑in protections guard against overcurrent, over‑voltage, short circuits, and overheating so your system remains reliable in varying environments.

• Comprehensive safeguards reduce the risk of damage to batteries and panels in harsh conditions.
• Robust enclosure and cooling support longer life in outdoor installations.

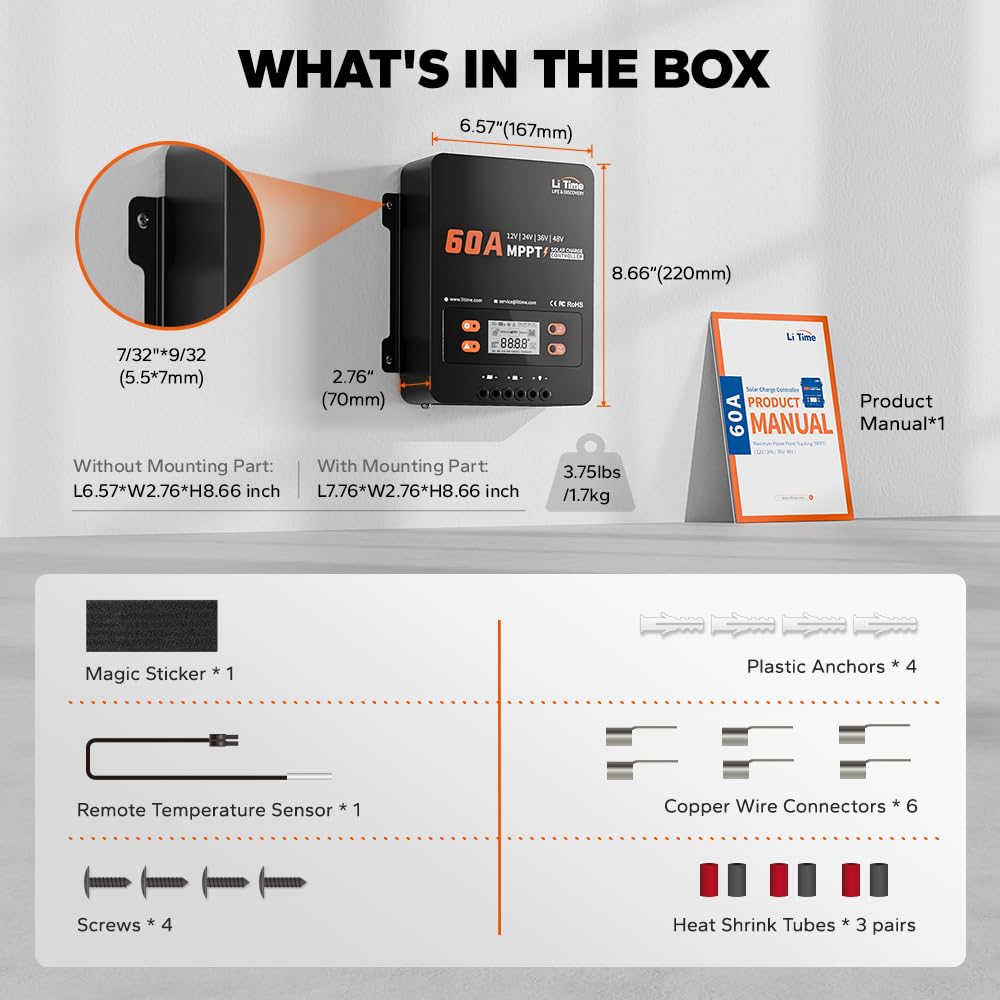

What’s Included and Practical Use

In addition to the core controller, an optimized copper wire connector is included to improve contact quality during installation, supporting better current transmission. The combination is suitable for off‑grid cabins, RVs, tiny homes, and DIY solar setups where space and reliability matter.

Professional Support and Getting Started

Lit Time provides responsive technical support and customer service to help with setup, configuration, and troubleshooting. If you have questions, reach out, and the team aims to respond within 24 hours.
