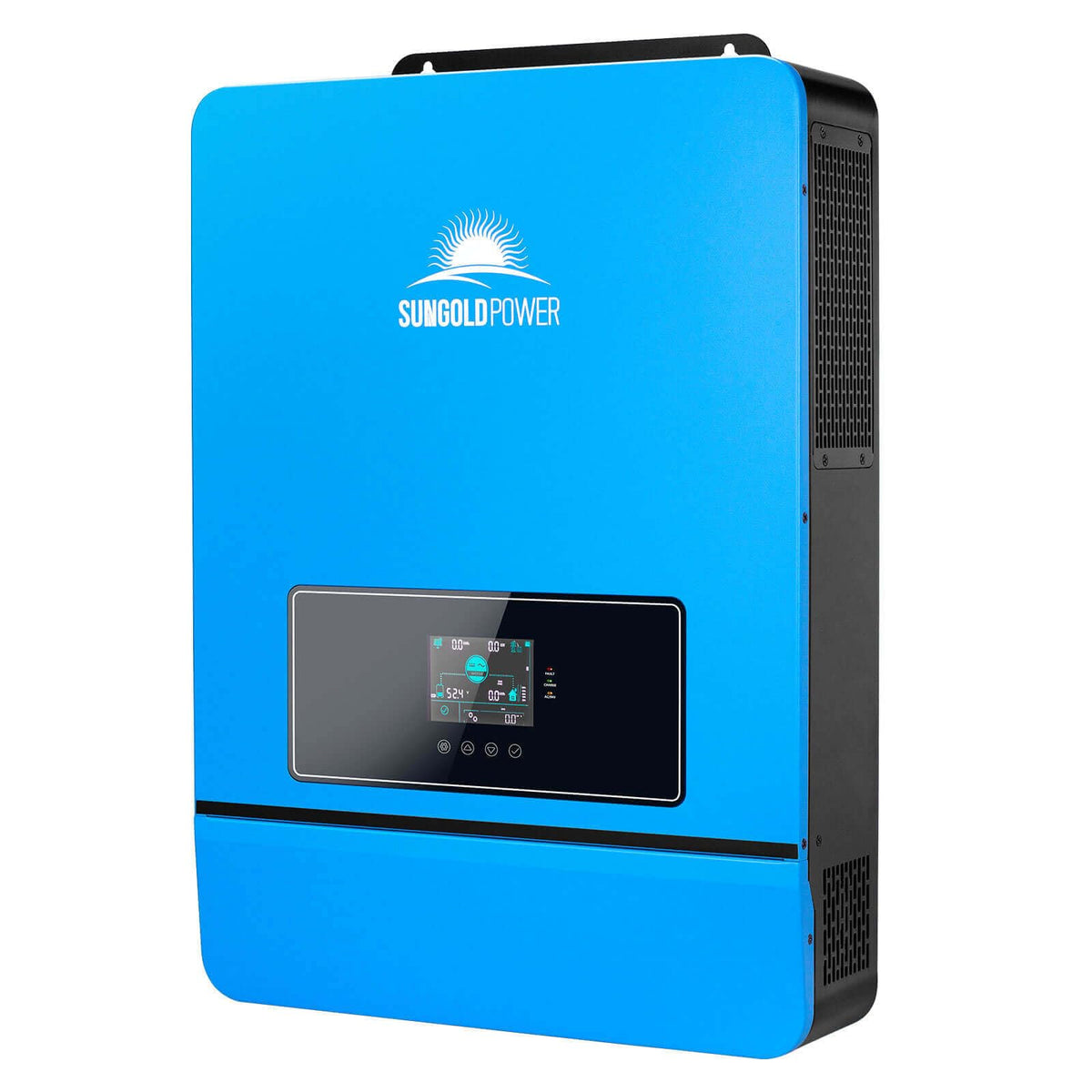

SUNGOLDPOWER 10000W 48V Solar Inverter, Built-in 2 MPPTs, Max 200A Battery Charging, Split Phase AC Input/Output 120V/240V(settable),Pure Sine Wave (WiFi and BMS COMM) UL1741 SPH10048P

Overview

The SUNGOLDPOWER 10000W 48V solar inverter is designed for robust energy needs at home, in a cabin, or on a remote site. It delivers a reliable pure sine wave power source with high surge capability for demanding appliances, motors, and tools. Dual MPPTs maximize solar harvest, even as conditions change, while a versatile split-phase output (120V/240V or single-phase 120V) makes it compatible with common electrical layouts. A built-in WiFi module enables convenient monitoring from your phone, helping you stay informed about performance and charging status.

Key capabilities at a glance

• 10,000 W continuous power with up to 20,000 W peak to support heavy loads.
• Pure Sine Wave output for smooth operation of electronics and motors.
• Two integrated MPPT solar controllers for flexible PV wiring and better energy capture.

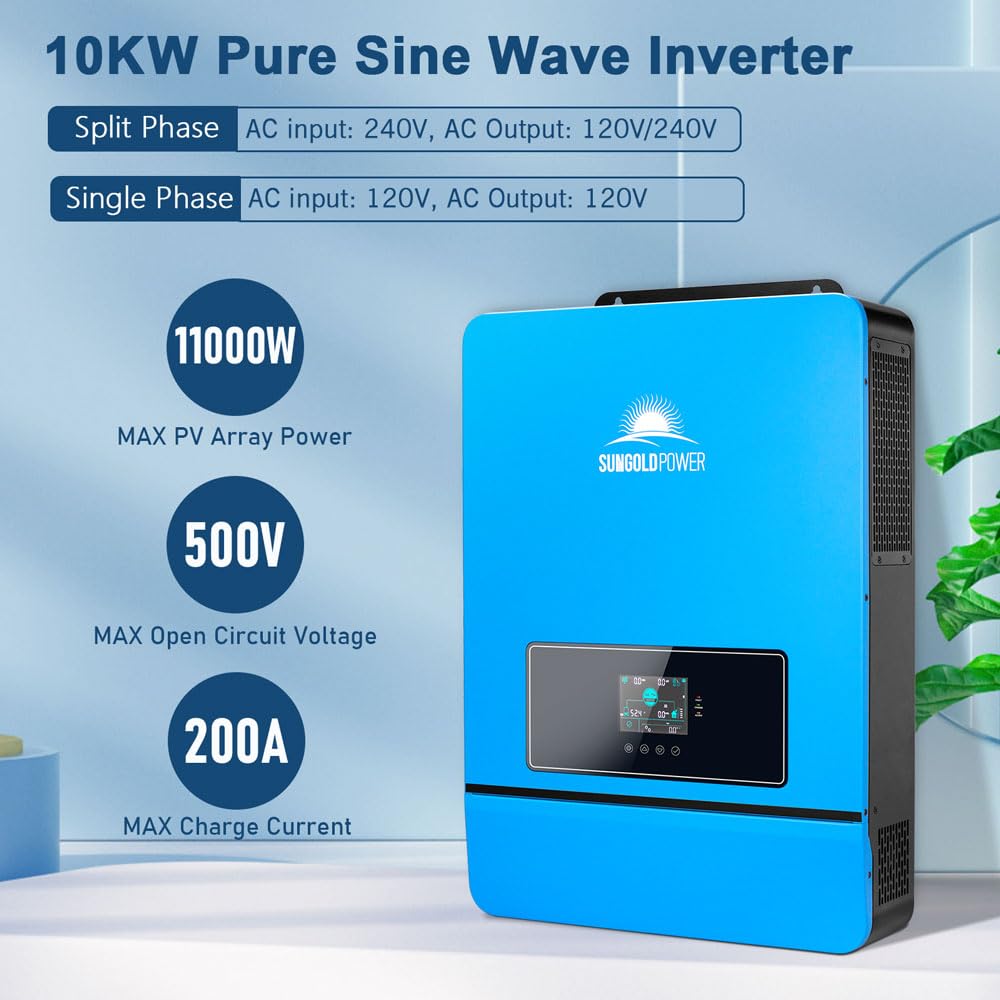

• PV input up to 500 VDC open circuit for adaptable array configurations.
• Split-phase output options: 120V single-phase or 120/240V split-phase.

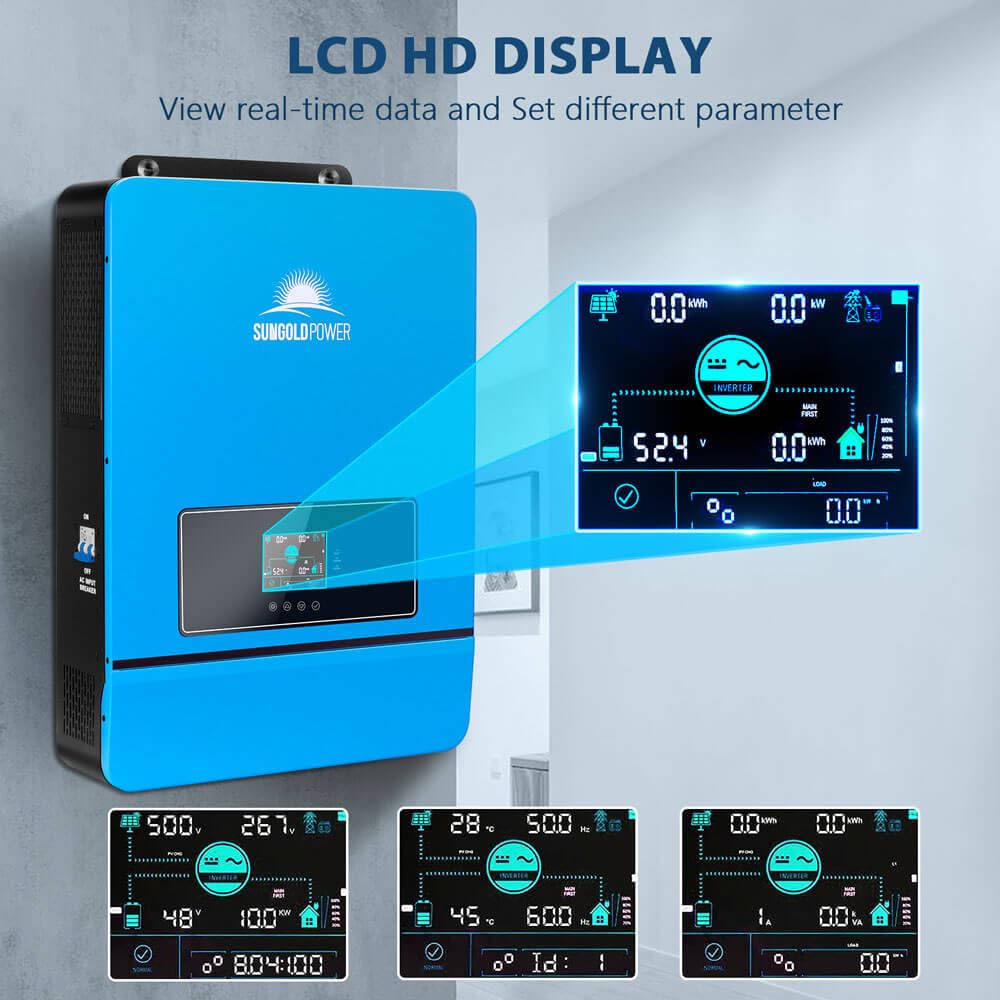

• WiFi connectivity for remote status checks and parameter viewing.

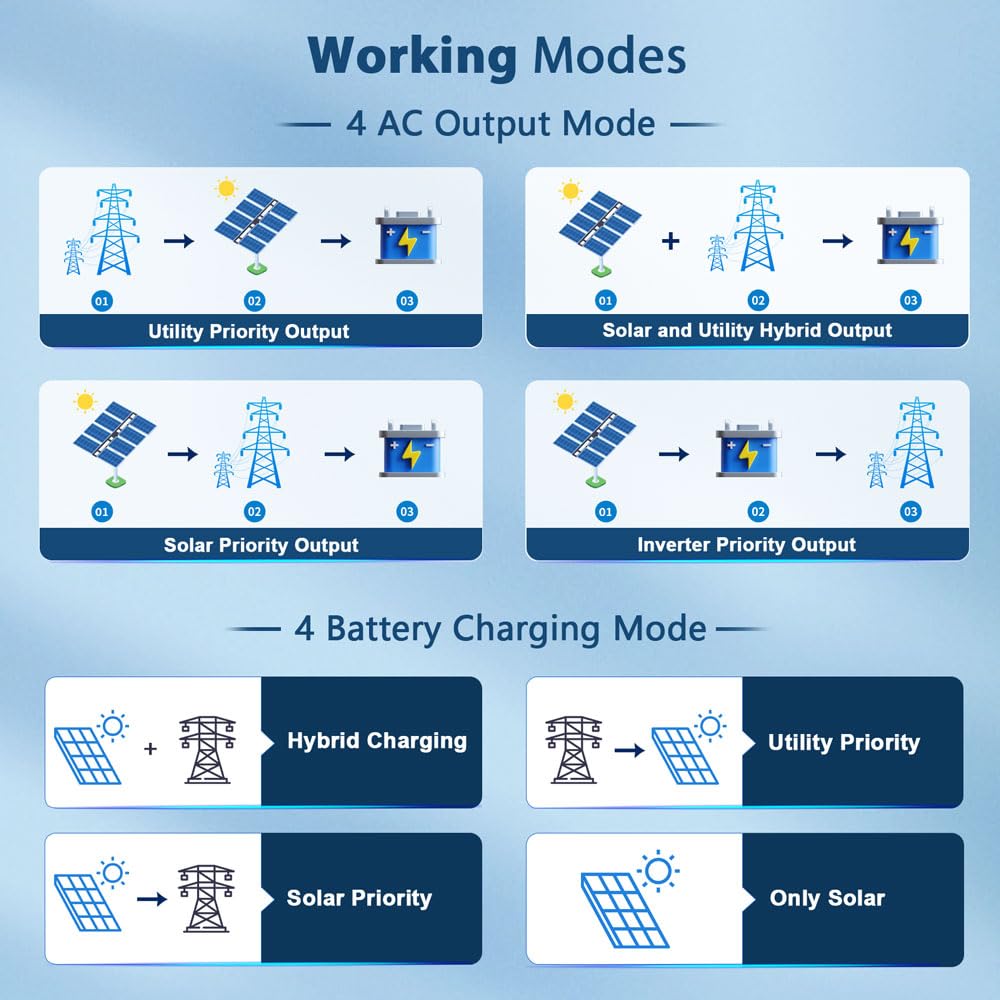

Flexible charging and output modes

• Hybrid Charging: combine solar and grid power for continuous operation.
• Utility Priority Charging: prioritize grid energy when available.
• Solar Priority Charging: prioritize solar energy for greener operation.
• Only Solar Charging: run on PV energy when grid power is not needed.

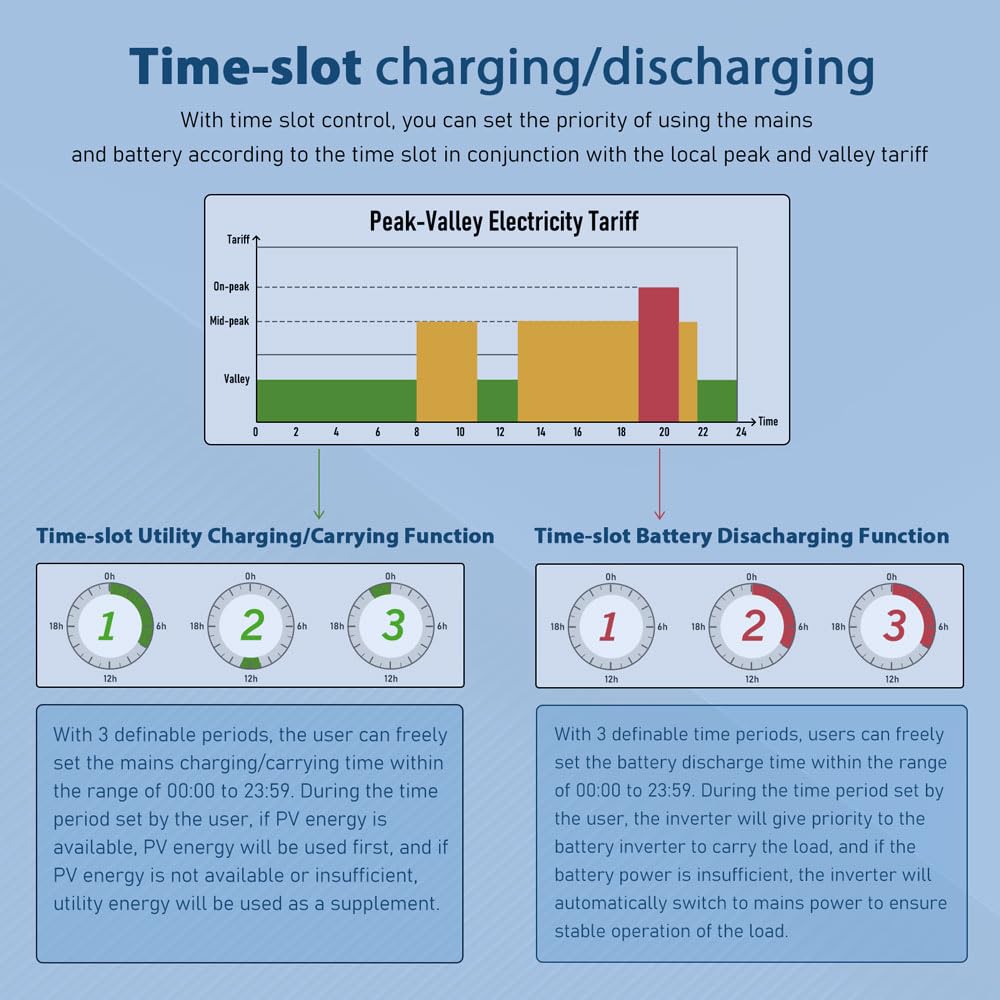

Time-slot charging and discharging

The time-slot feature lets you schedule charging and discharging periods to align with local tariffs, helping you manage costs by using PV energy during favorable times and shifting usage away from peak periods.

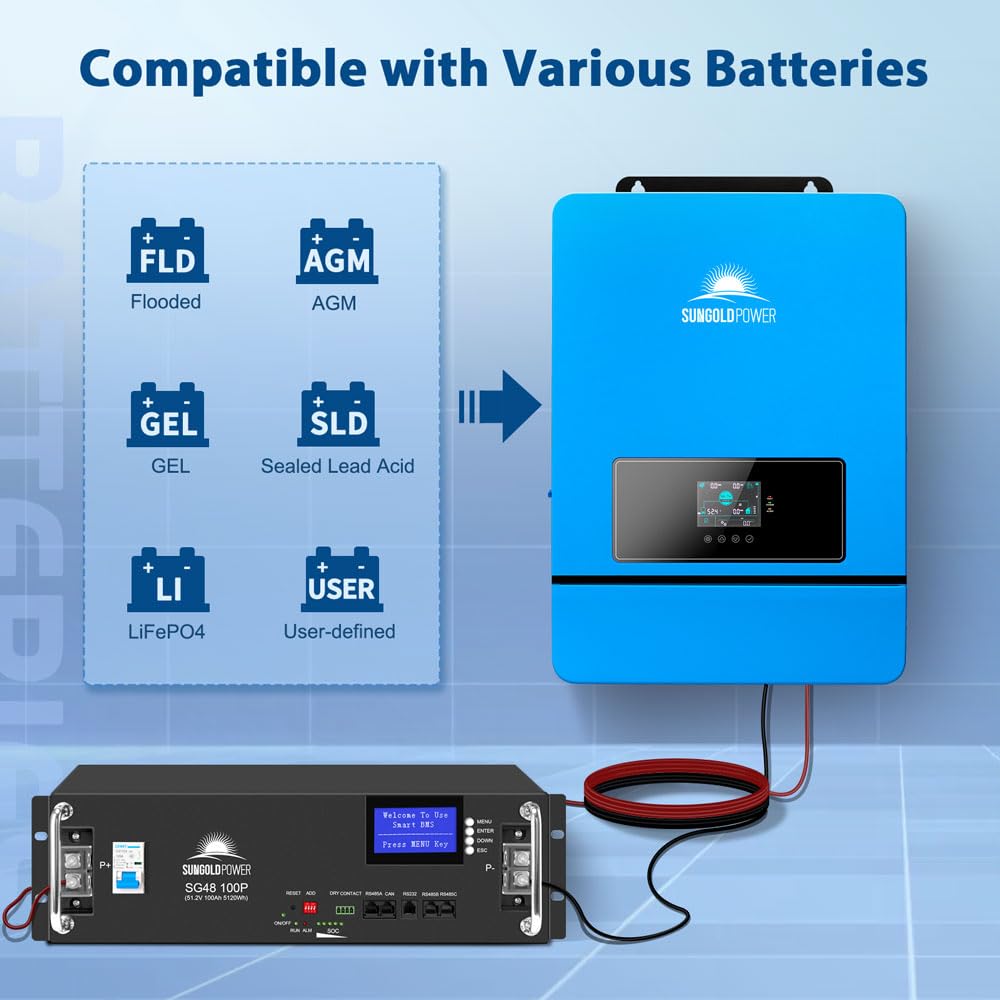

Battery compatibility and connectivity

Designed for 48V systems, it works with AGM, Sealed, Gel, Flooded, and Lithium battery chemistries. A user mode provides broad flexibility across battery types, with USB and RS485 communication options to connect with SunGoldPower batteries and compatible control systems.

Real-world use scenarios

• Backup power for essential loads during outages in a home or workshop.
• Off-grid cabins or remote buildings that rely on solar plus battery storage.
• RVs, tiny homes, or mobile setups needing reliable, clean power anywhere.

Note: This system offers proven capabilities and smart features to improve energy autonomy. Benefits are presented as possibilities based on specifications, not guarantees.
