VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in; 18-1/8–26-3/8 in) with 2 Hoses & G3/8 Inch Check Valve | Heavy-Duty Tractor Top Link

Overview

The VEVOR hydraulic top link for Cat. 1-1 tractors is built to streamline implement alignment and provide steady, controllable motion across demanding tasks. With a 3/8 inch rod inlet/outlet and a versatile stroke, this top link is designed to fit Cat. 1-1 systems while delivering reliable hydraulic assistance in fields, farms, or work sites.

Engineered for real-world demanding use, it combines a sturdy metal body with careful sealing and a practical hose configuration. The result is a unit that can respond to dynamic adjustments, helping you maintain consistent tool height, angle, and tension as you work through varying terrain or load conditions.

Key capabilities

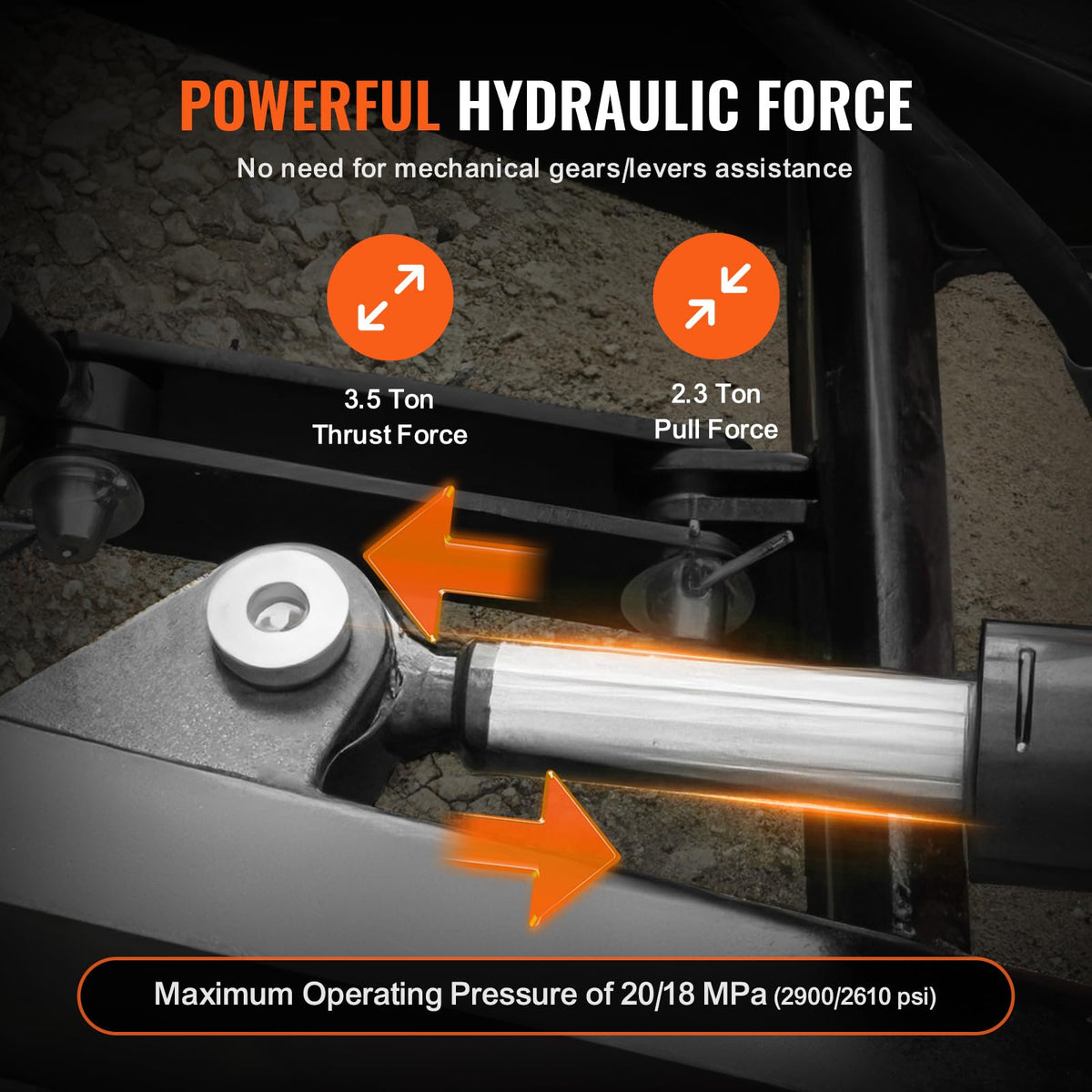

• Push strength up to 3.5 tons and pull strength up to 2.3 tons, enabling robust lifting and leveling actions.
• Max working pressure rated at 20 MPa (approx. 2900 psi) for pushing and 18 MPa (approx. 2610 psi) for pulling, supporting demanding operations.

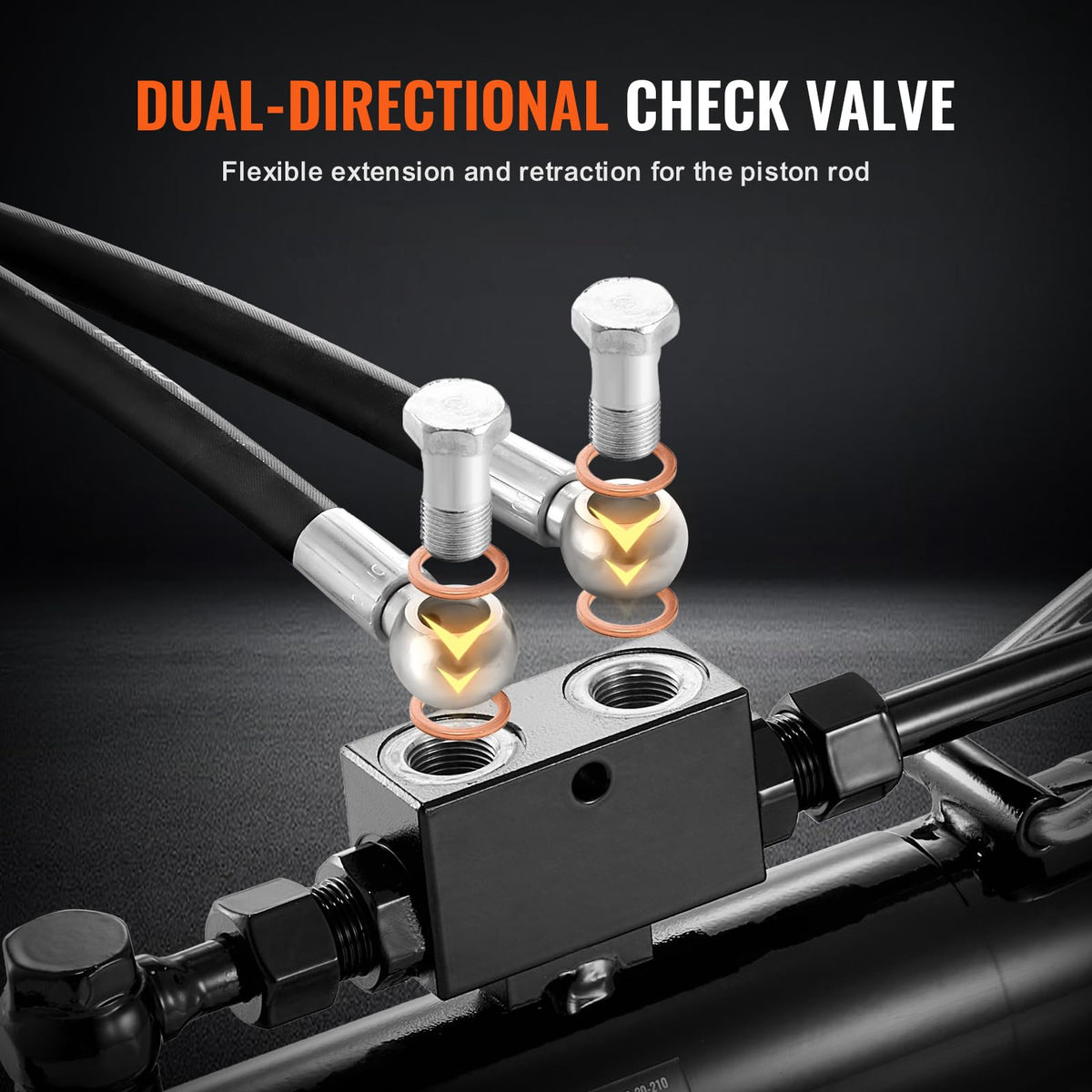

• High-sealing bidirectional check valve minimizes hydraulic oil leakage and helps hold position when the system is idle.

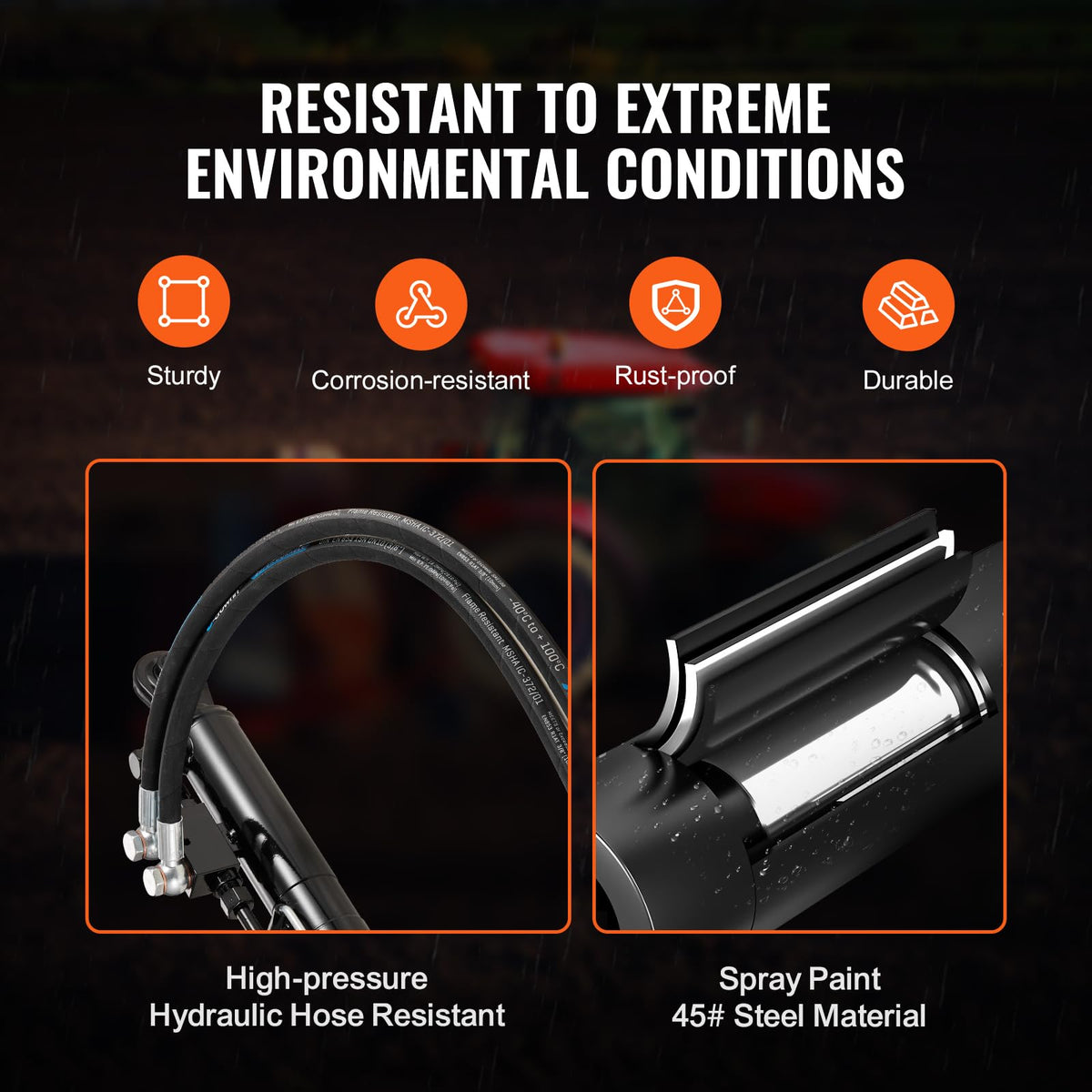

• Thick 45# steel construction with a protective coating to resist rust, wear, and corrosion in challenging weather.

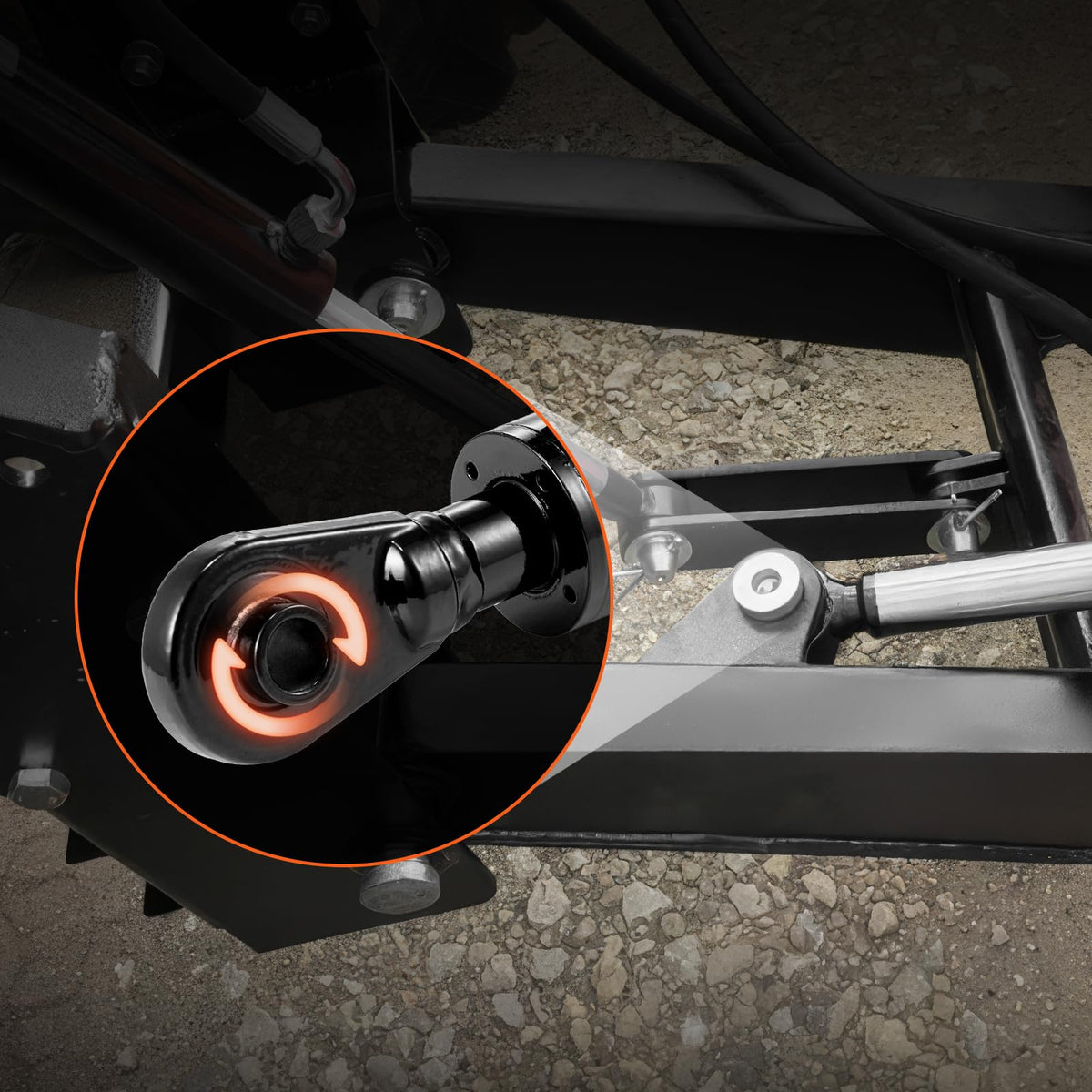

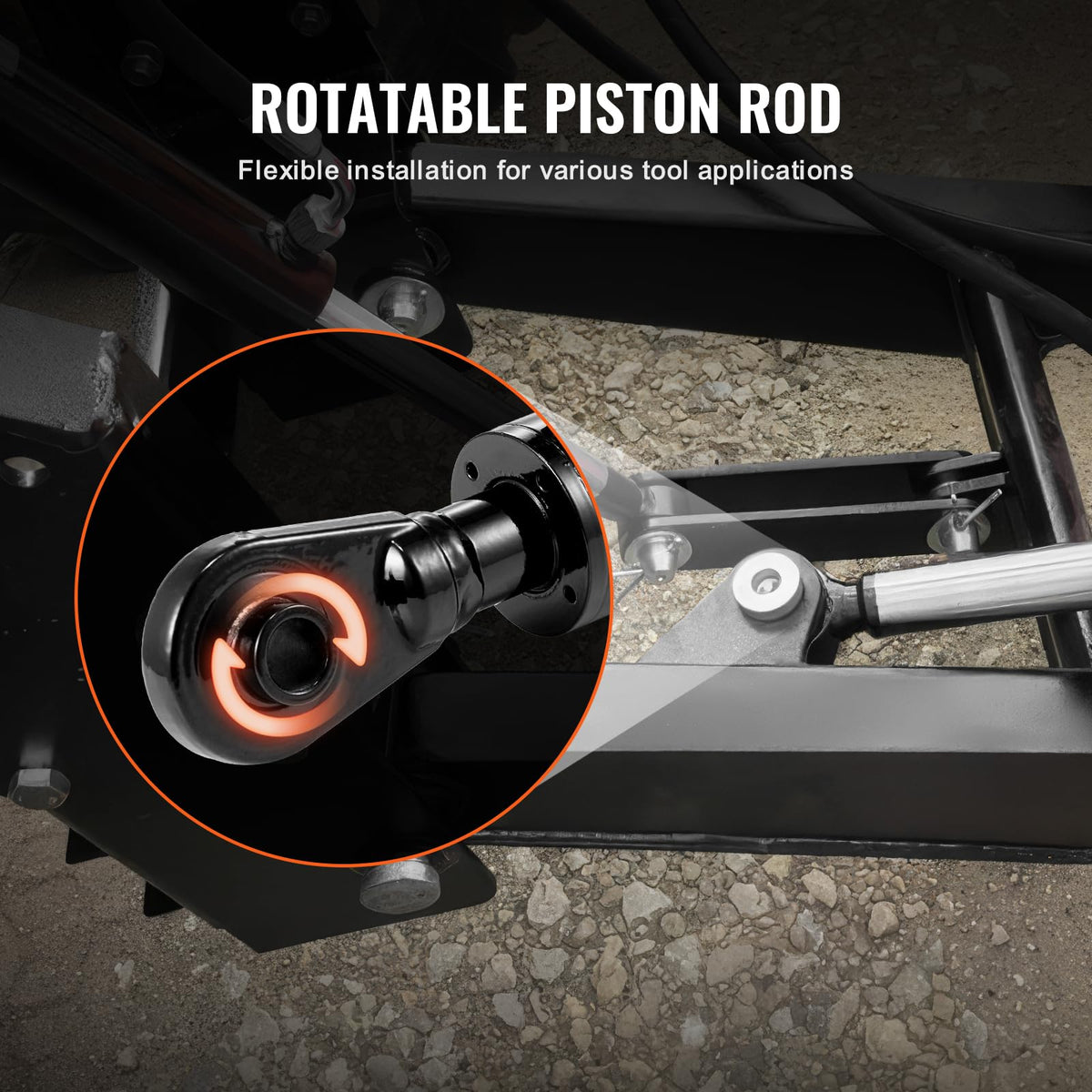

• Rotatable piston rod and included hoses simplify installation, reducing setup time and fitment constraints.

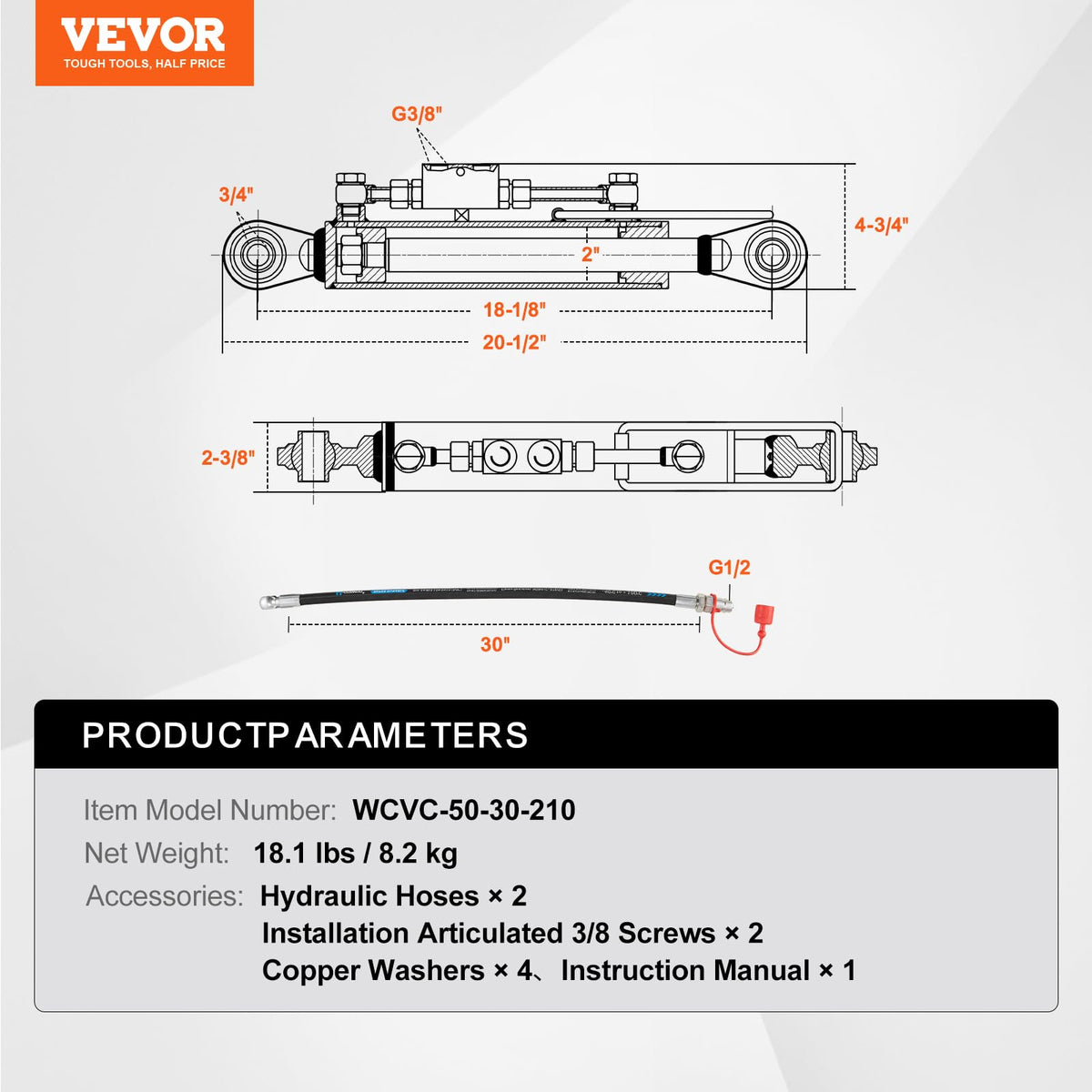

Specifications at a glance

• Rod inlet/outlet diameter: 3/8 in

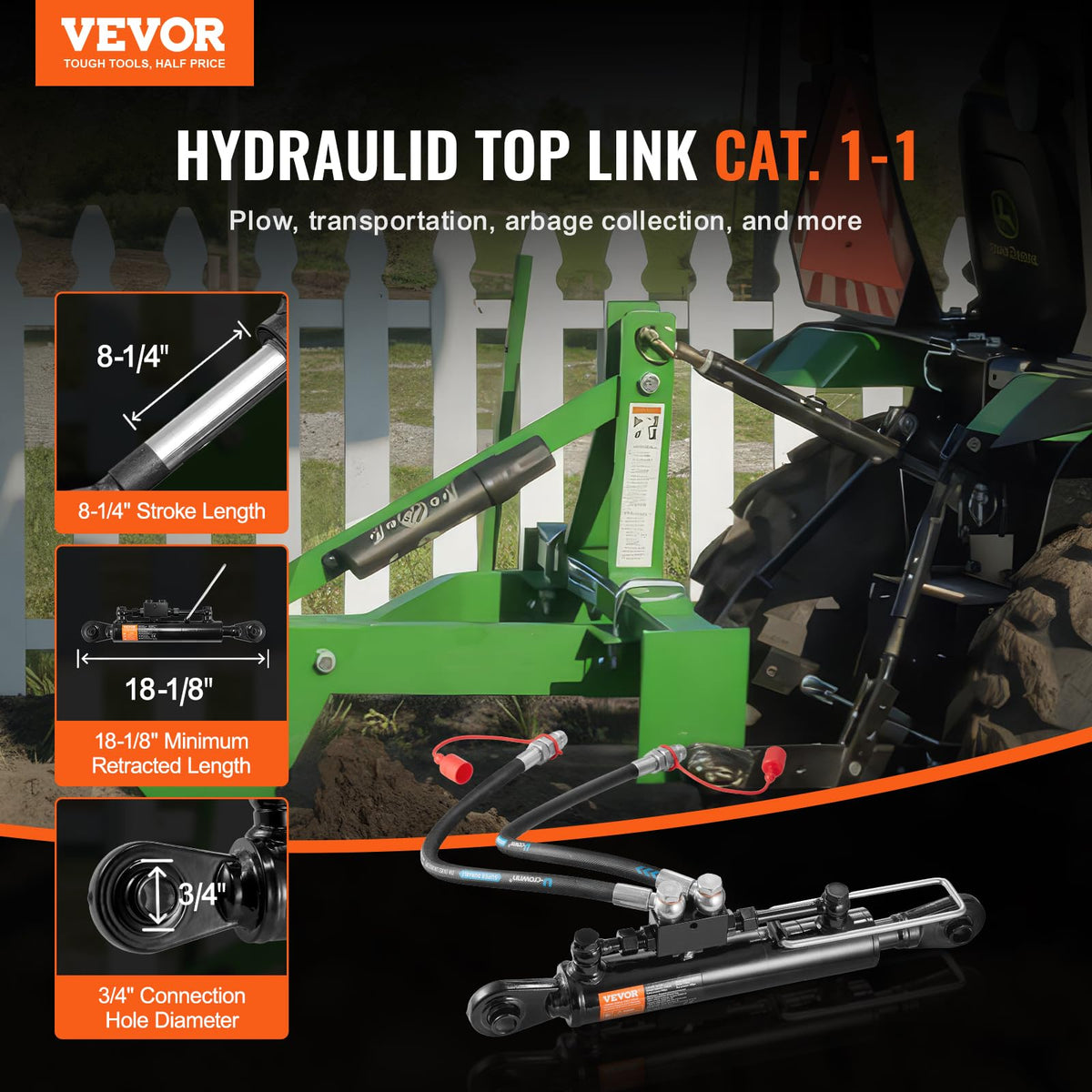

• Min retracted length: 8-1/8 in (460 mm)
• Stroke length: 8-1/4 in (210 mm)
• Hydraulic hose length: 30.1 in (765 mm)
• Cat. 1-1 tractor compatibility for direct mounting

Real-world use cases

In heavy-duty plowing, waste handling, and agricultural transport, the top link aids in precise alignment and stable operation. The combination of push and pull capacity helps maintain consistent implement height and angle as loads change, while the long hose length supports flexible routing around implements and tractors.

Field-ready reliability matters when mud, rain, or temperature swings are part of the day. This unit’s durable steel build and coated finish are designed to hold up under those conditions, helping you focus on the task at hand rather than equipment concerns.

Why choose VEVOR

VEVOR emphasizes durability, straightforward installation, and practical features that support day-to-day work. While results vary with setup and application, this top link offers strong leverage options and reliable positional control that many operators find beneficial for routine adjustment tasks.

What’s in the box

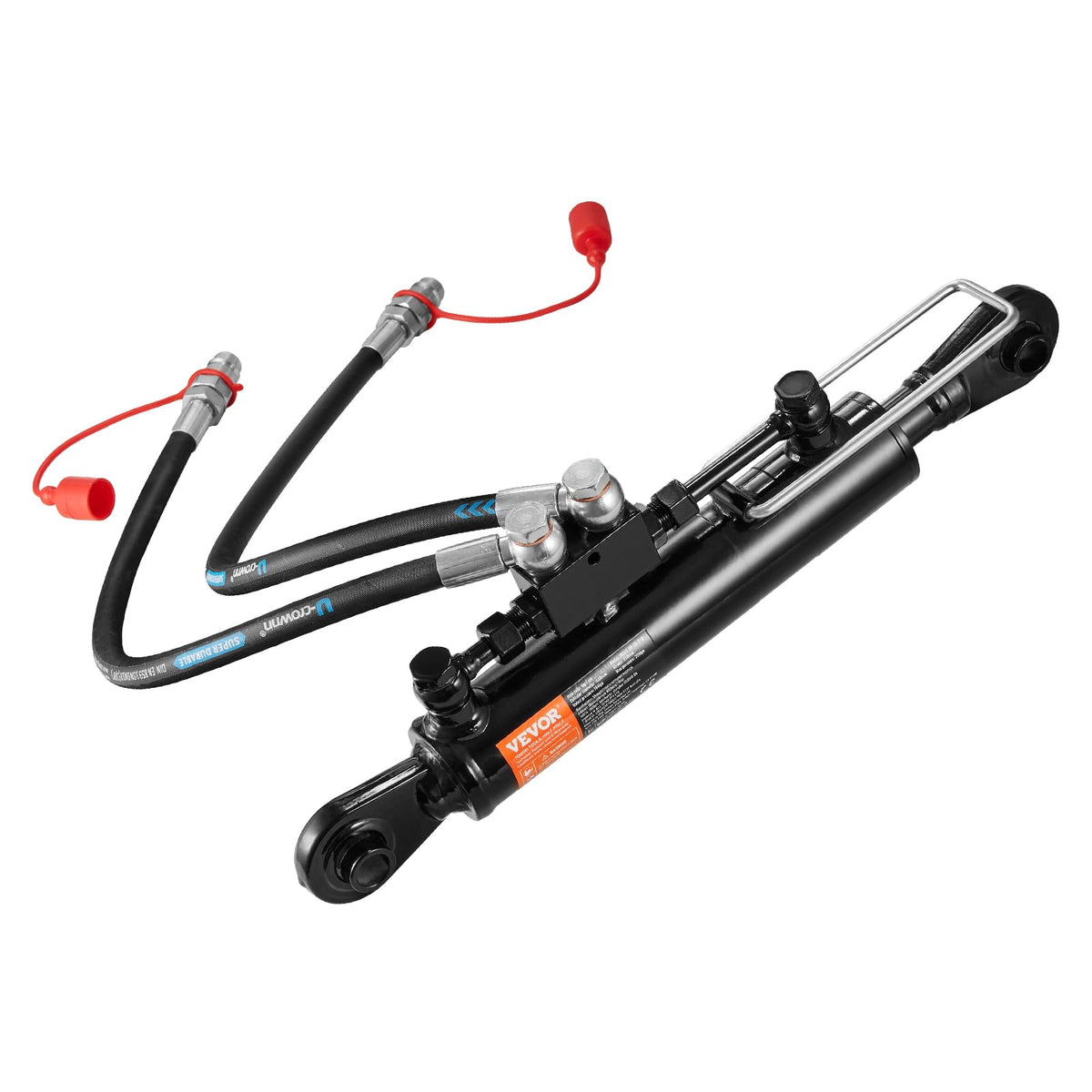

The package includes the hydraulic cylinder with two hoses and a G3/8 inch check valve, designed for direct installation on Cat. 1-1 tractors and ready to use out of the box.
