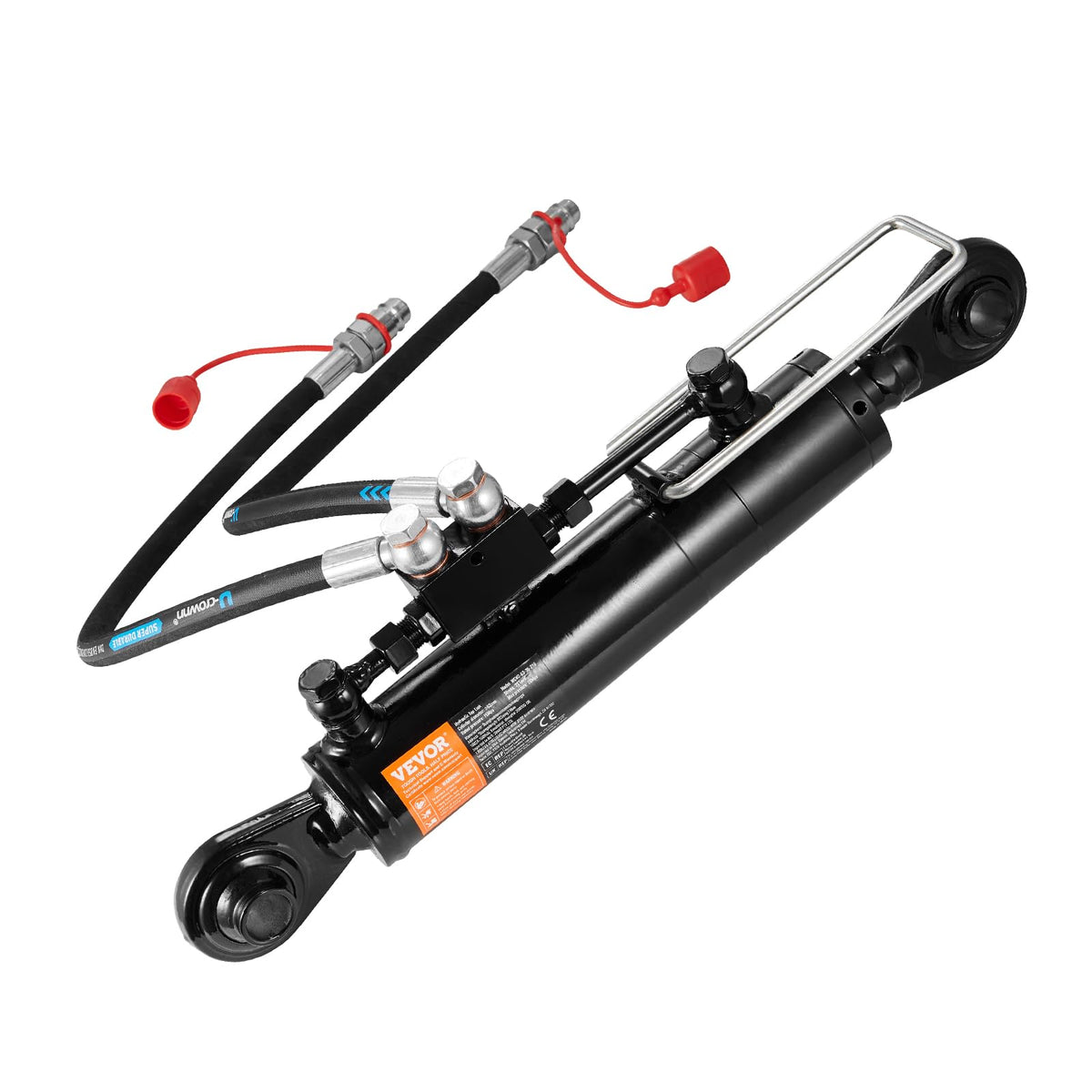

VEVOR Hydraulic Top Link Cat. 2-2 (19-11/16 in – 28 in) | 4T Push / 2.4T Pull

VEVOR Hydraulic Top Link Cat. 2-2: Precision, Power, and Durability

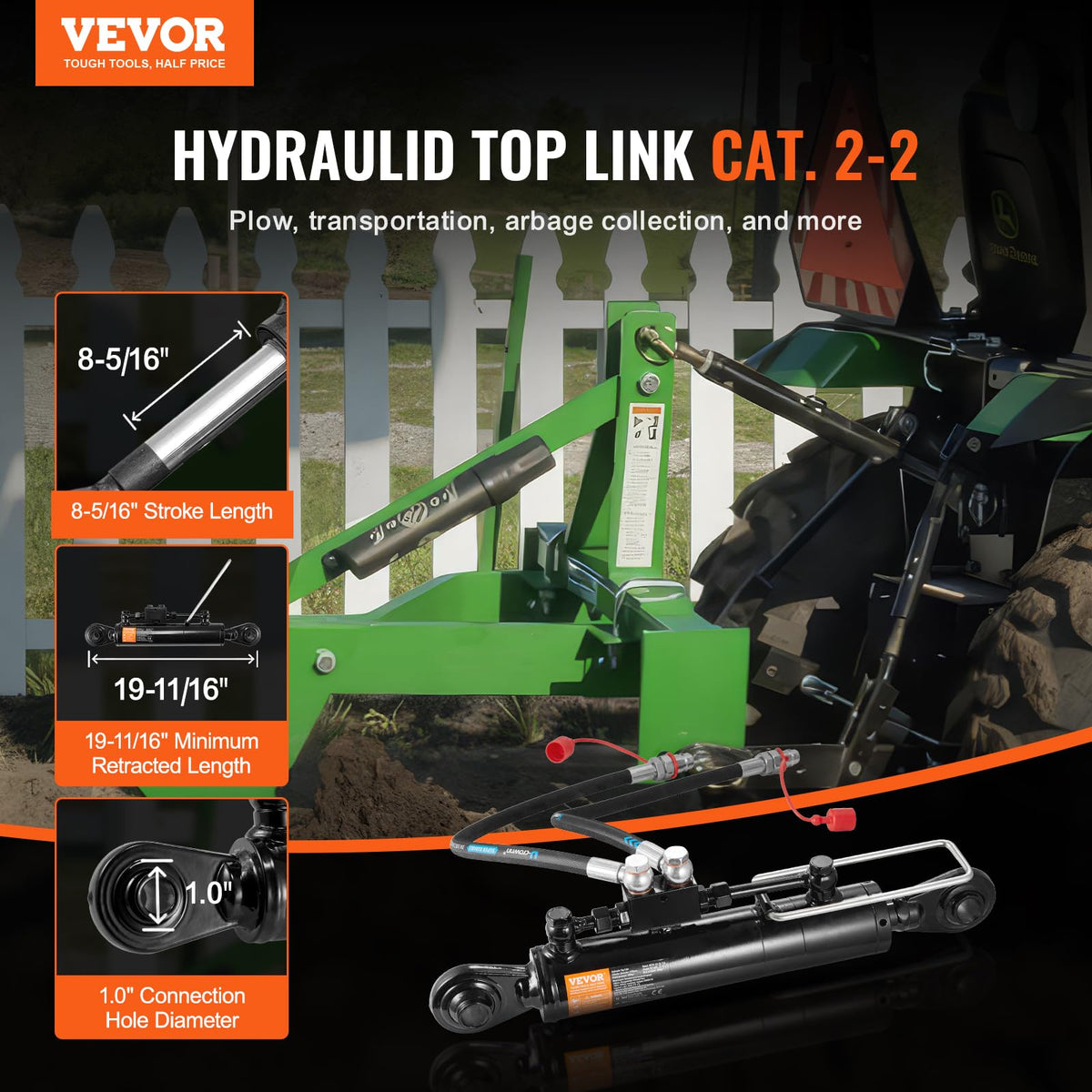

Designed for Cat. 2-2 tractors, the VEVOR hydraulic top link blends rugged construction with precise control. It features a 3/8 in rod inlet/outlet, a retracted length of 19-11/16 in, and an 8-5/16 in stroke, paired with a 30.1 in hydraulic hose. This combination supports a wide range of heavy-duty tasks, from field plowing to material handling, while allowing you to adjust hitch position smoothly from the tractor cab or field edge.

Core strengths

• Adaptation for Cat. 2-2 tractors with direct installation options, enabling compatibility with common implements.

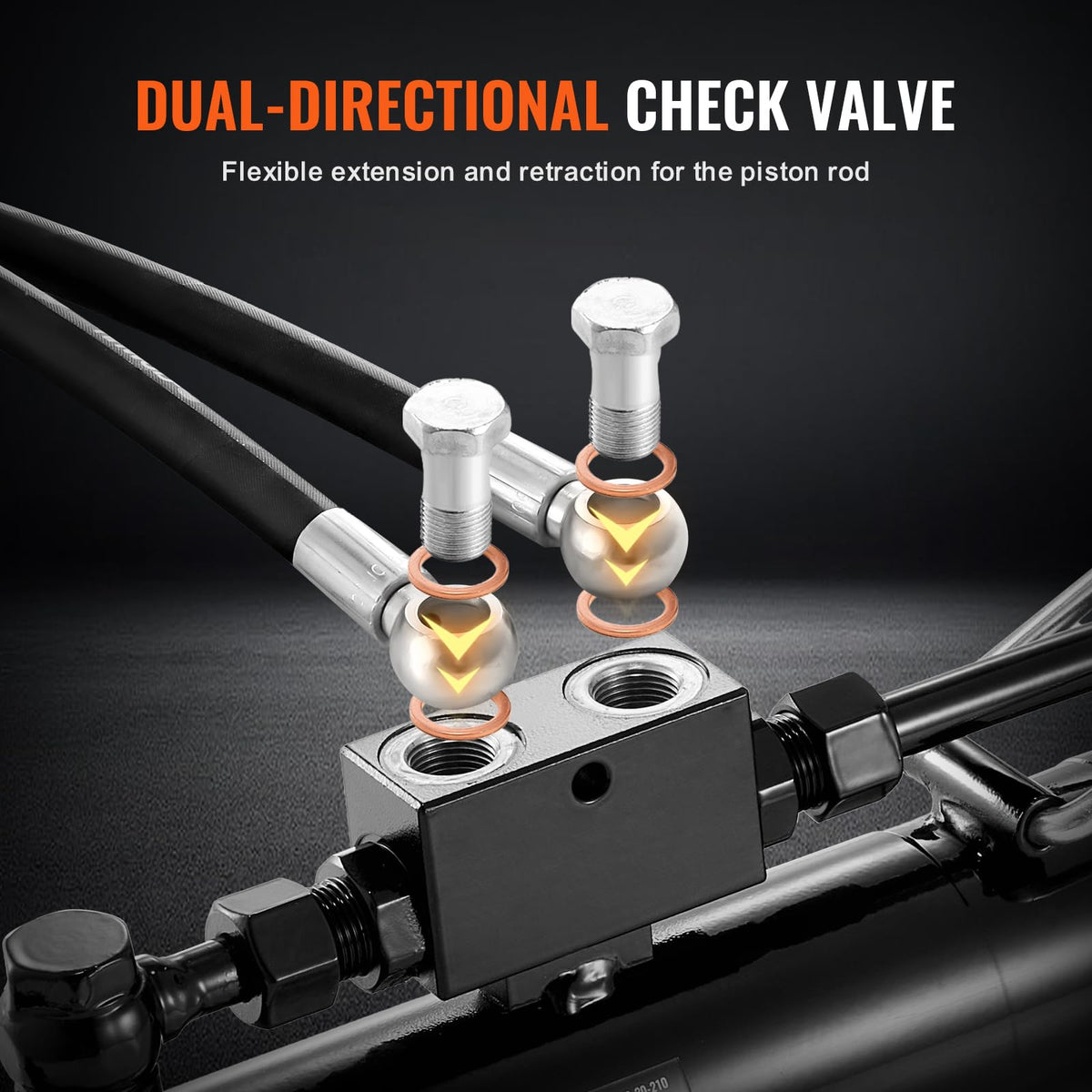

• High-sealing bidirectional check valve minimizes hydraulic oil leakage and helps secure the piston’s position when the system is idle.

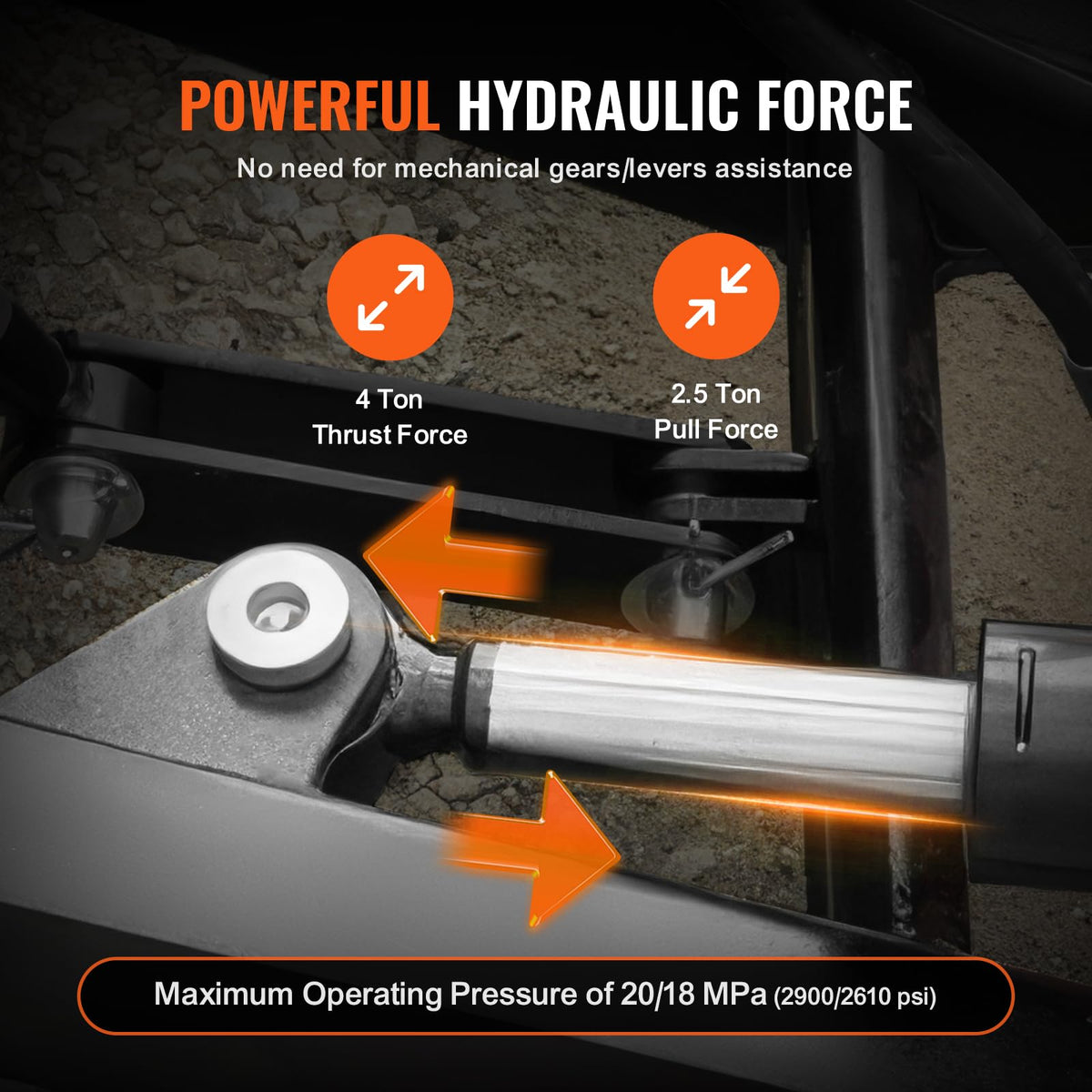

• Robust hydraulic power: up to 4 tons of pushing force and 2.4 tons of pulling force at a max working pressure of 20/18 MPa (2900/2610 psi).

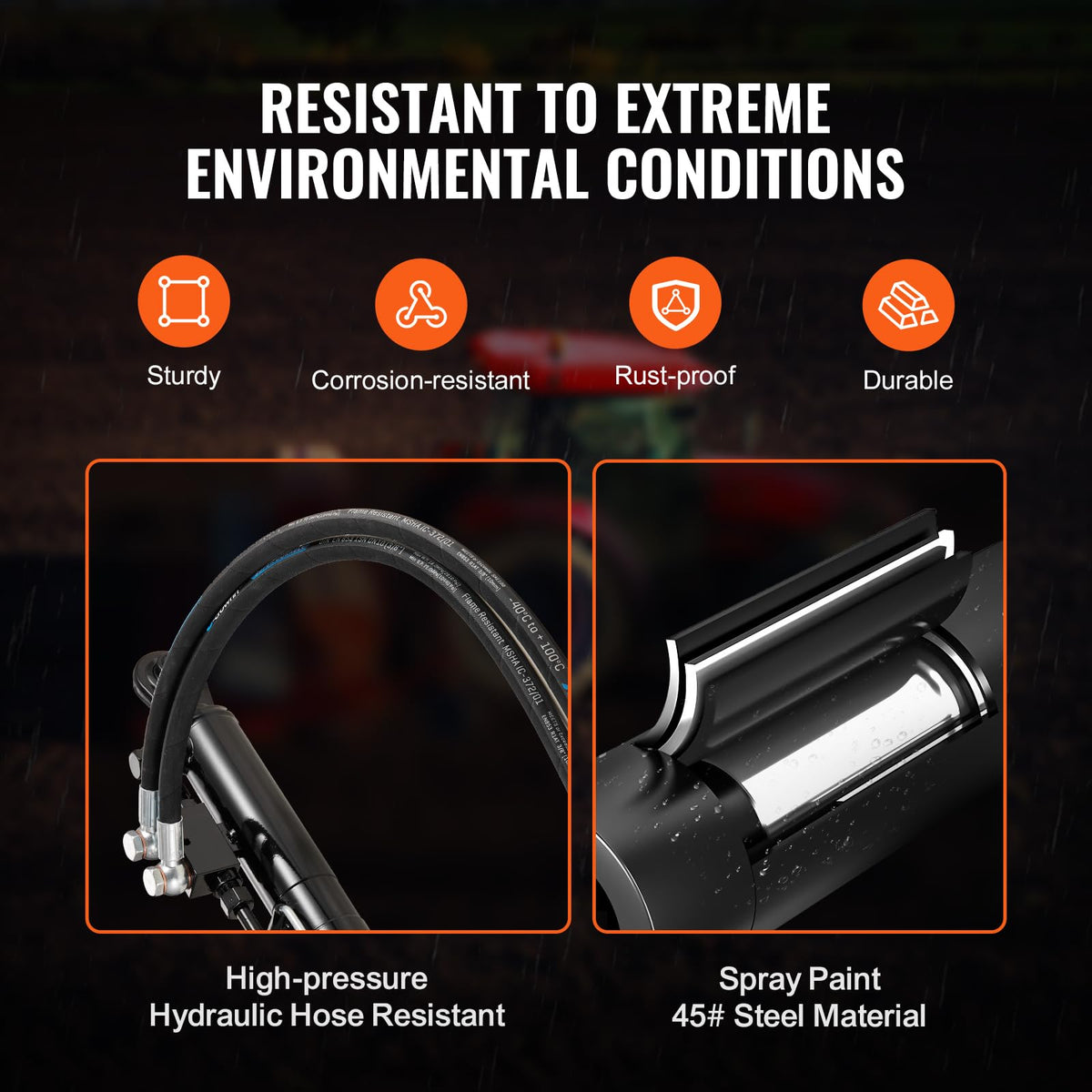

• Heavy-duty construction using thick 45# steel and a corrosion-resistant coating to resist rust, wear, and exposure to mud, rain, and heat.

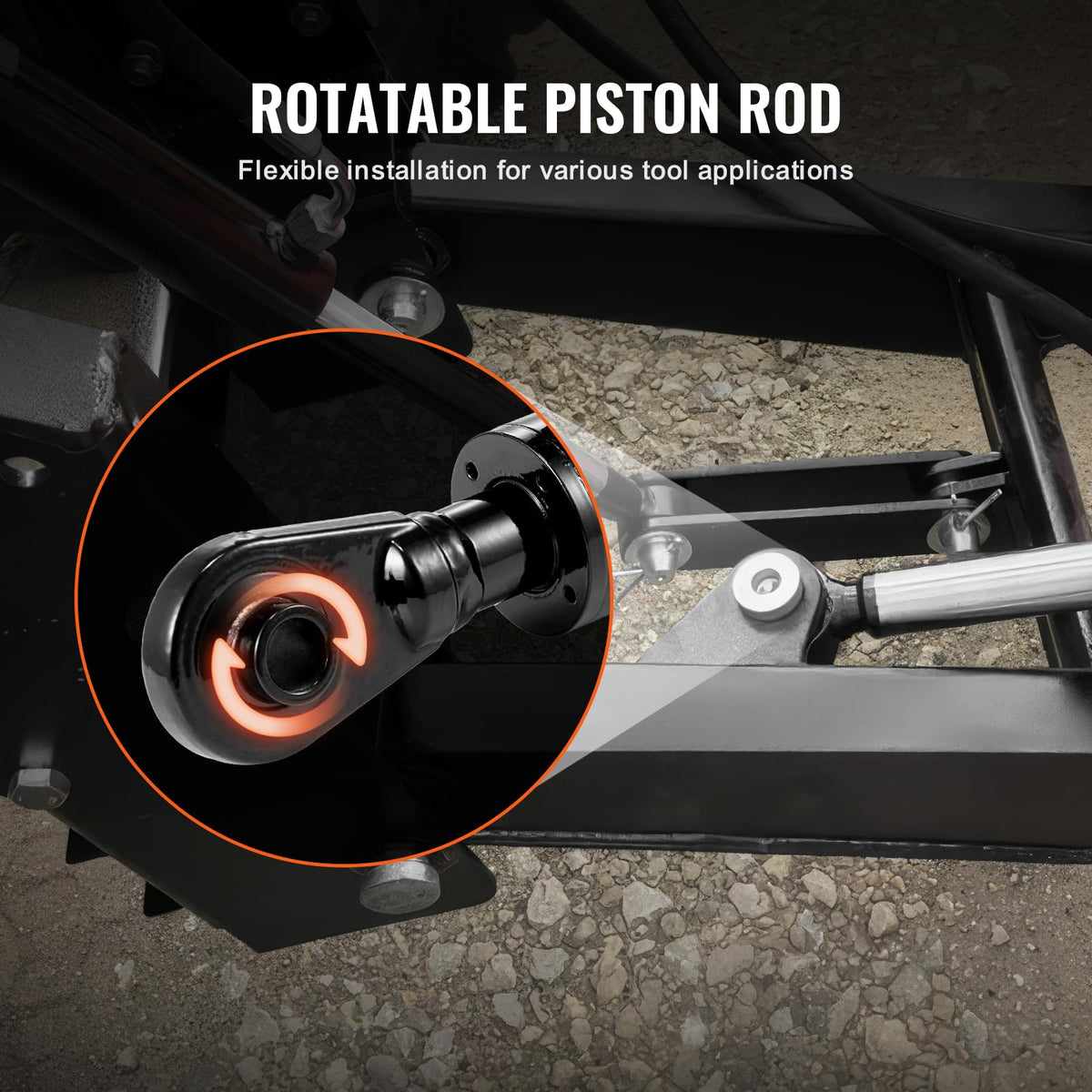

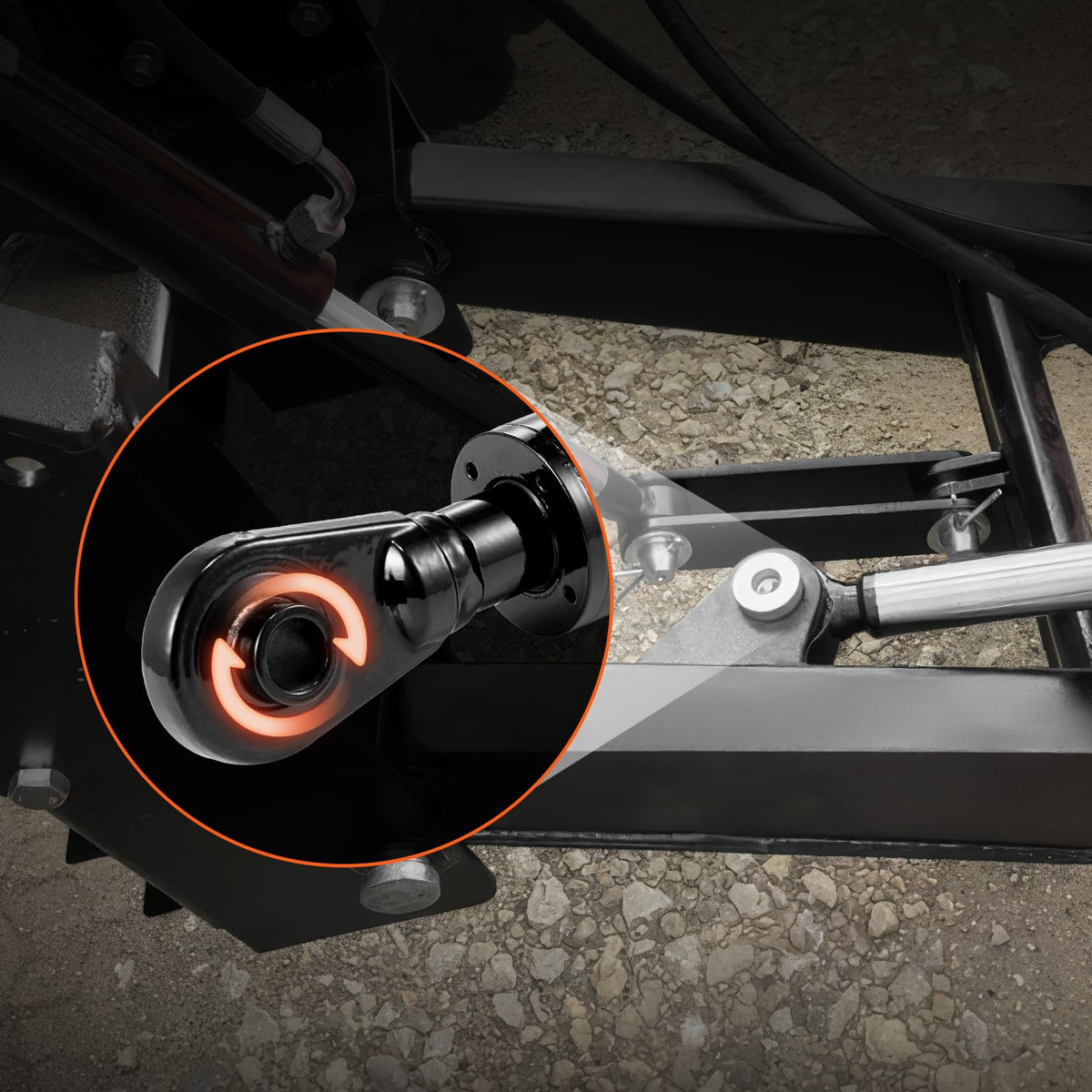

• Easy installation with rotatable piston rod and included high-pressure hoses, letting you set up without sourcing extra parts.

Real-world use scenarios

In heavy agricultural plowing, the top link helps maintain an optimal hitch angle, improving implement alignment and tractor stability. For waste recycling or transportation tasks, the combination of push/pull capability and precise control can simplify attachment positioning and load alignment, reducing operational drudgery on long workdays. The included hoses and flexible mounting options support a range of configurations, so you can adapt to different implements or working conditions as needed.

What you gain

• Durable steel frame with a protective coating designed to withstand mud, rain, and temperature fluctuations.
• Hassle-free setup thanks to ready-to-use hoses and a rotatable rod that accommodates various installations.
• Reliable position hold when the pump is off, thanks to the proven valve design that minimizes leakage.

Specifications at a glance

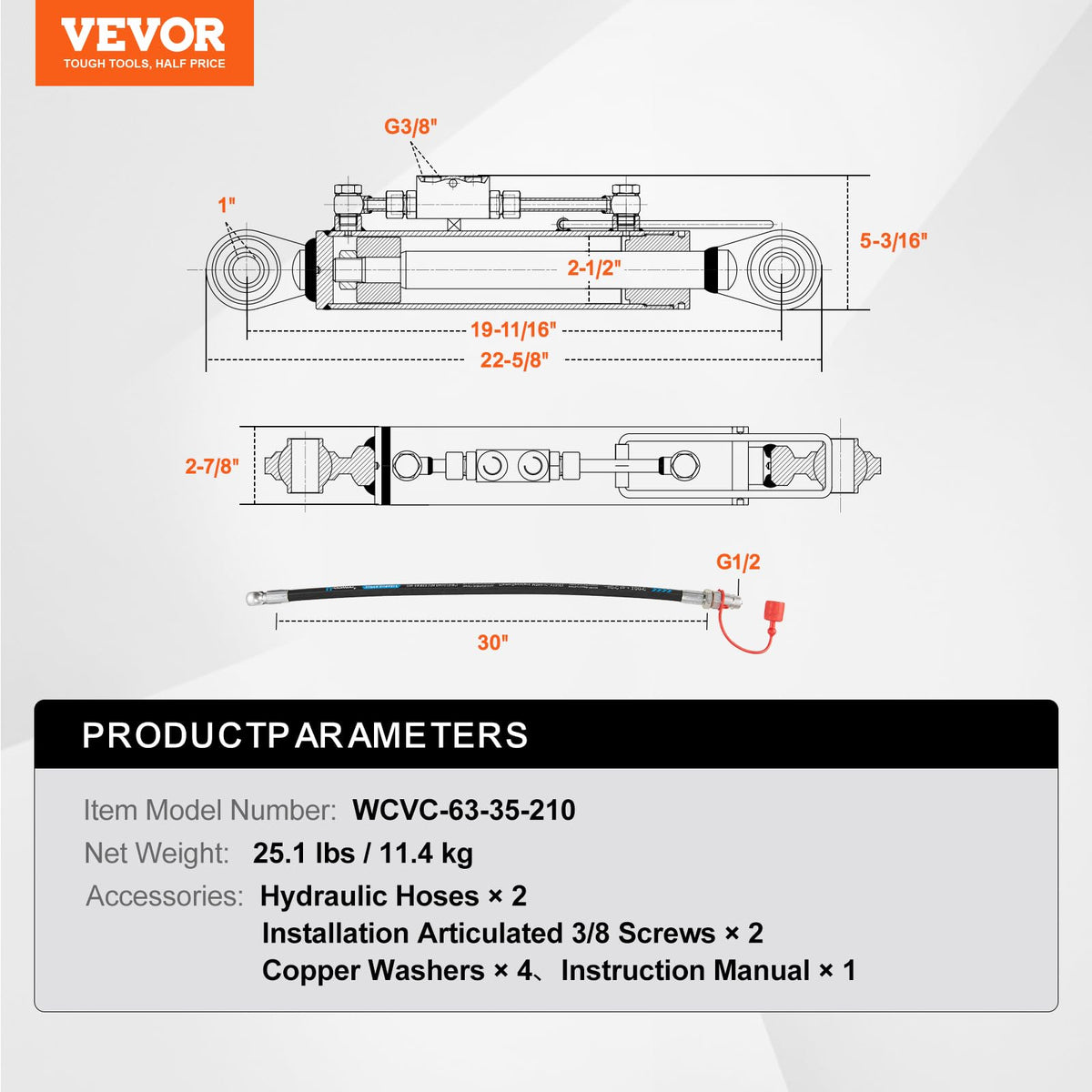

Rod inlet/outlet diameter: 3/8 in; Retracted length: 19-11/16 in; Stroke: 8-5/16 in; Hose length: 30.1 in; Compatible with Cat. 2-2 tractors; Maximum pressures: 20/18 MPa (2900/2610 psi).
