Victron Energy Lynx Shunt IP22 VE.Can 1000A M10 - High-Accuracy Battery Monitoring

Overview

Meet the Victron Energy Lynx Shunt IP22 VE.Can 1000A M10. Built for rugged reliability in demanding power systems, this shunt delivers precise measurements of current, voltage, and state of charge, helping you keep battery management accurate even in complex setups.

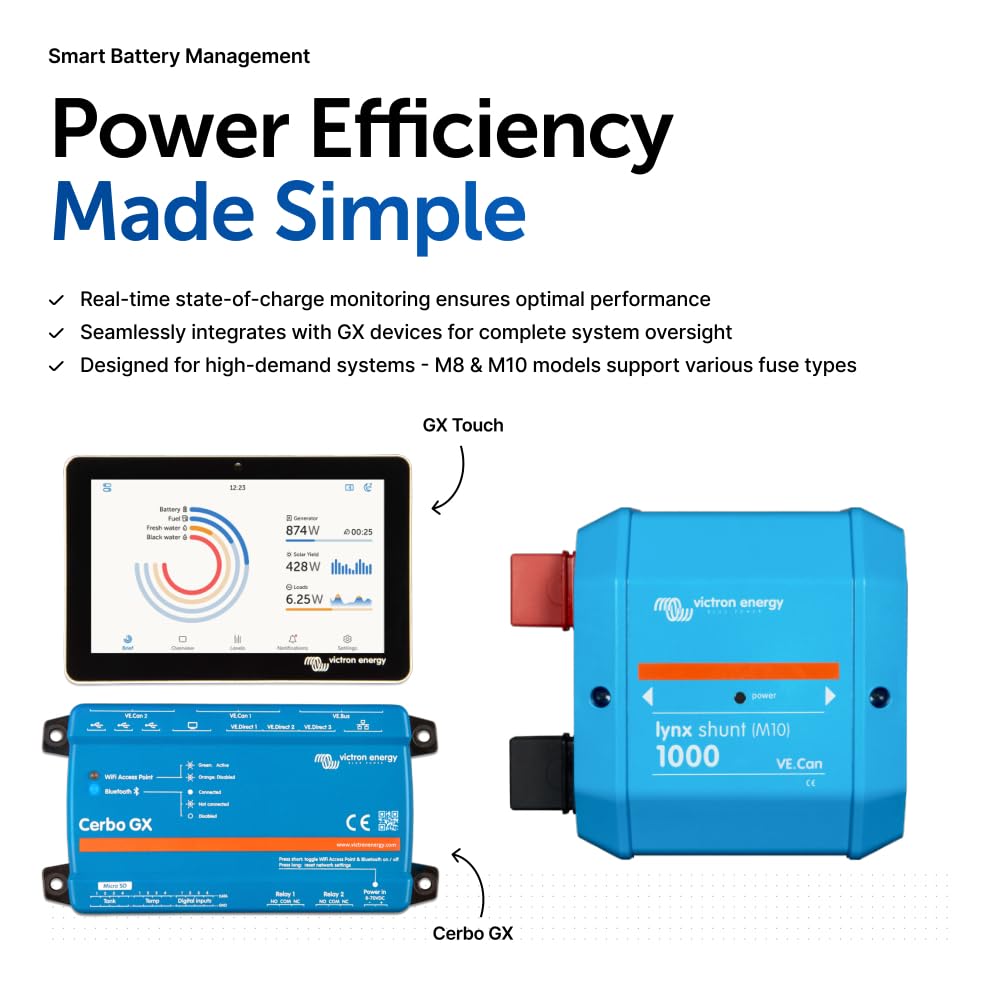

With VE.Can connectivity, it can communicate with GX devices for real-time monitoring and data sharing, turning your battery bank into an informed, responsive system.

Two editions for different needs

The Lynx Shunt is available in two variants, M8 and M10. The M10 adds an extra busbar that allows the main fuse to be relocated, which is especially helpful in larger installations that require higher-rated protection.

• The M10 model supports CNN, ANL or Mega fuses (fuse purchase separately).
• The shunt includes a fuse holder for optional Class-T fuses, offering flexible protection options.

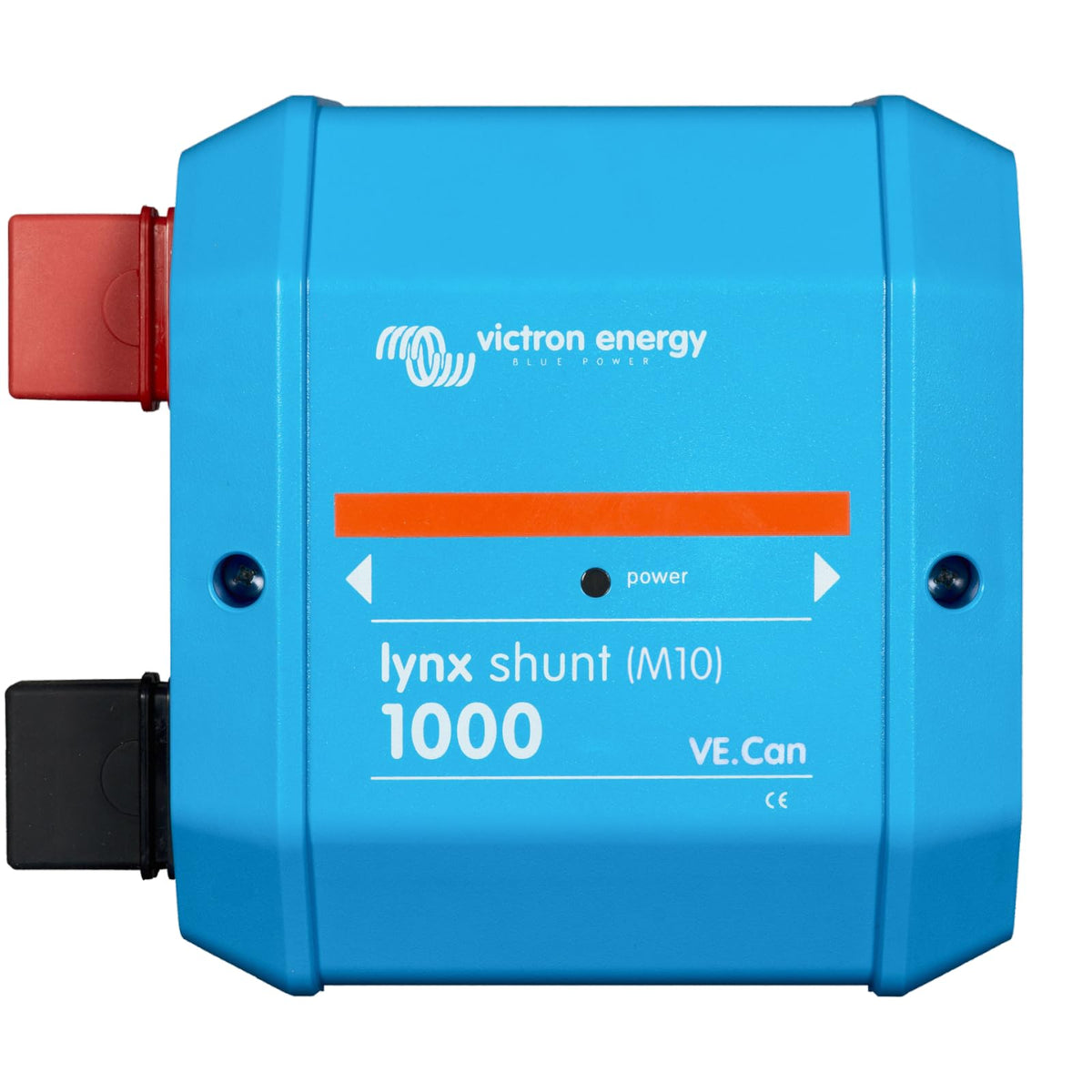

• A built-in power LED provides at-a-glance status indication for quick checks.

Real-world use cases

Ideal for off-grid homes, marine vessels, and mobile setups where accurate energy management matters. When paired with a GX device, you can monitor current flow, voltage, and remaining charge across large battery banks in near real time, enabling informed decisions about charging and discharging patterns.

Key benefits at a glance

• High accuracy current, voltage, and SOC measurements for reliable battery management.
• VE.Can communication enables real-time data sharing with GX devices.
• IP22 rated rugged construction supports installation in challenging environments.
• Flexible fuse options with optional Class-T fuses and large-fuse support on the M10.
• Visual status LED for quick health checks.

Compatibility and installation tips

Choose M8 for standard setups and M10 when you need a relocated main fuse. The fuse must be purchased separately, and plan wiring and fuse sizing according to your system's needs. The device is designed for straightforward integration with existing Victron components and VE.Can networks.

With its durable build and clear status indicators, the Lynx Shunt M10 supports confident monitoring in busy, high-demand environments, from solar-rich boats to remote cabins.
