Waveshare Solar Power Manager Module D: Efficient, Flexible Power Management

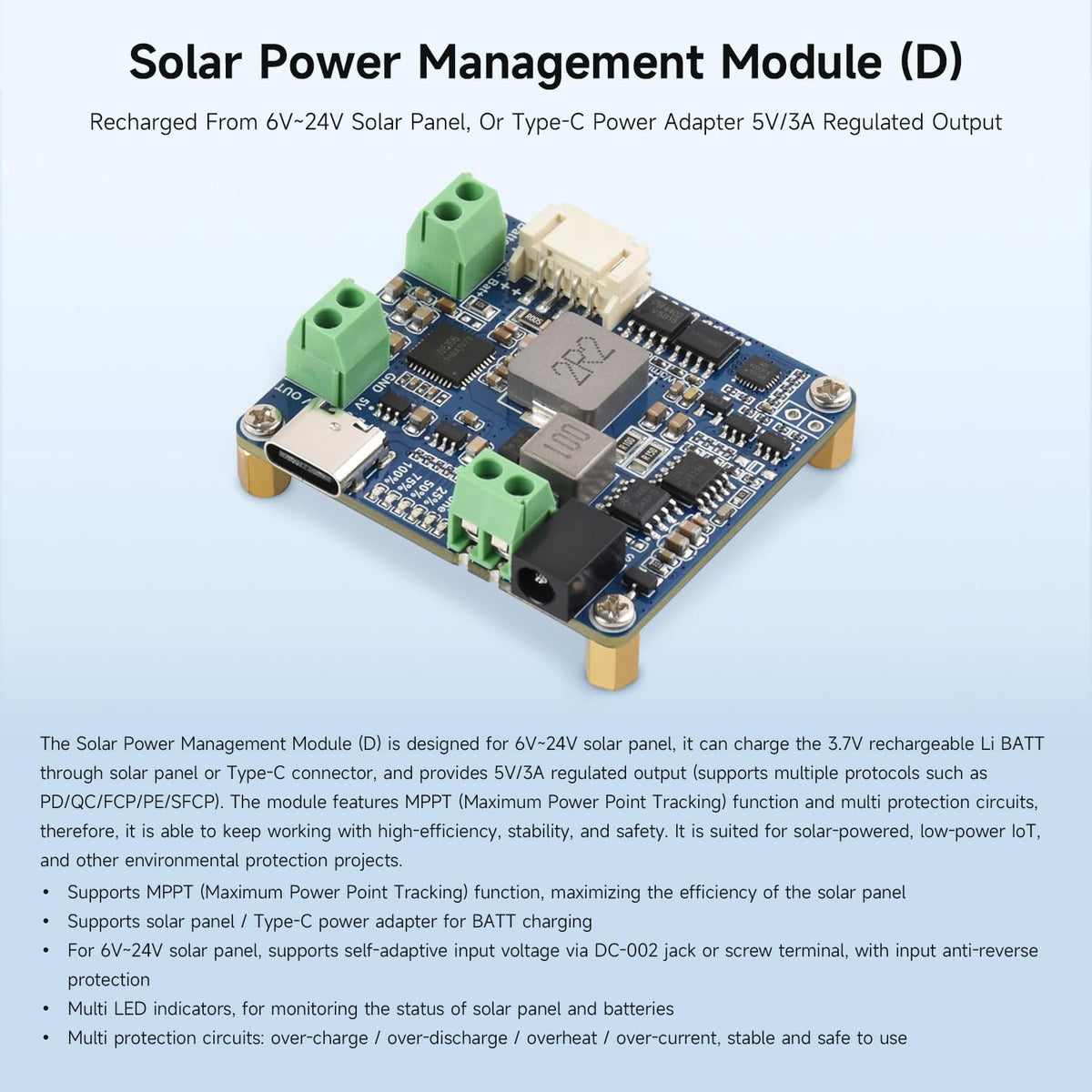

Designed for portable and off‑grid projects, the Waveshare Solar Power Manager Module D brings together solar charging, battery management, and a stable 5V/3A USB output in a compact, easy‑to‑use board. The unit ships with a battery holder so you can build a complete power kit, though batteries are not included and must be purchased separately if needed. Its thoughtful layout and clear indicators help you monitor power flow at a glance, whether you are tinkering in a workshop, deploying a remote sensor network, or powering a small off‑grid setup.

Key capabilities at a glance

• MPPT optimization to extract more usable energy from your solar panel
• Charge from solar panels or a Type‑C power adapter to replenish the battery pack

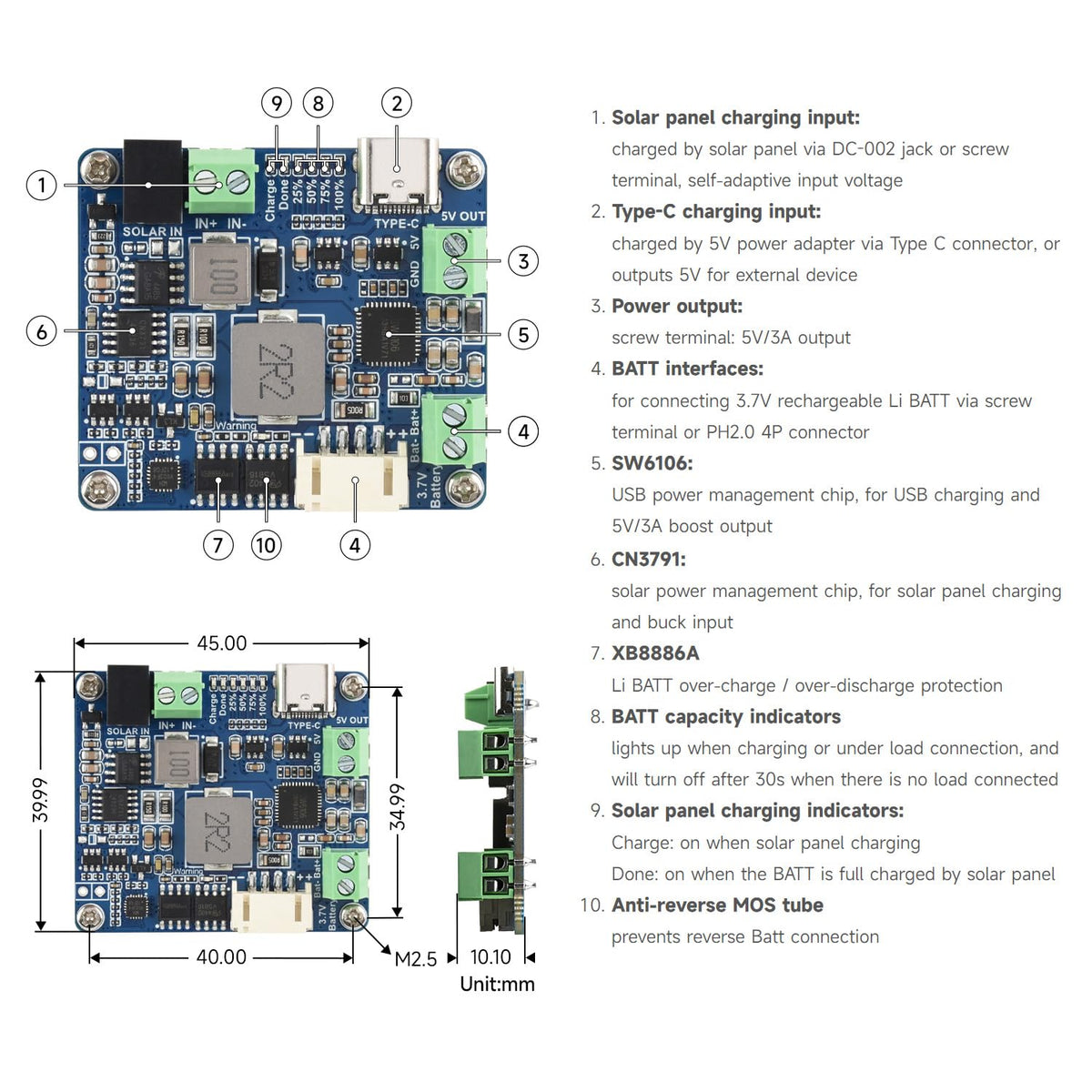

• Supports 6V–24V panels with self‑adaptive input via DC‑002 jack or screw terminal
• Input anti‑reverse protection to help guard against miswiring and reverse polarity
• Multiple LEDs provide at‑a‑glance status for solar input and battery health
• Comprehensive protection: over‑charge, over‑discharge, overheat, and over‑current safeguards

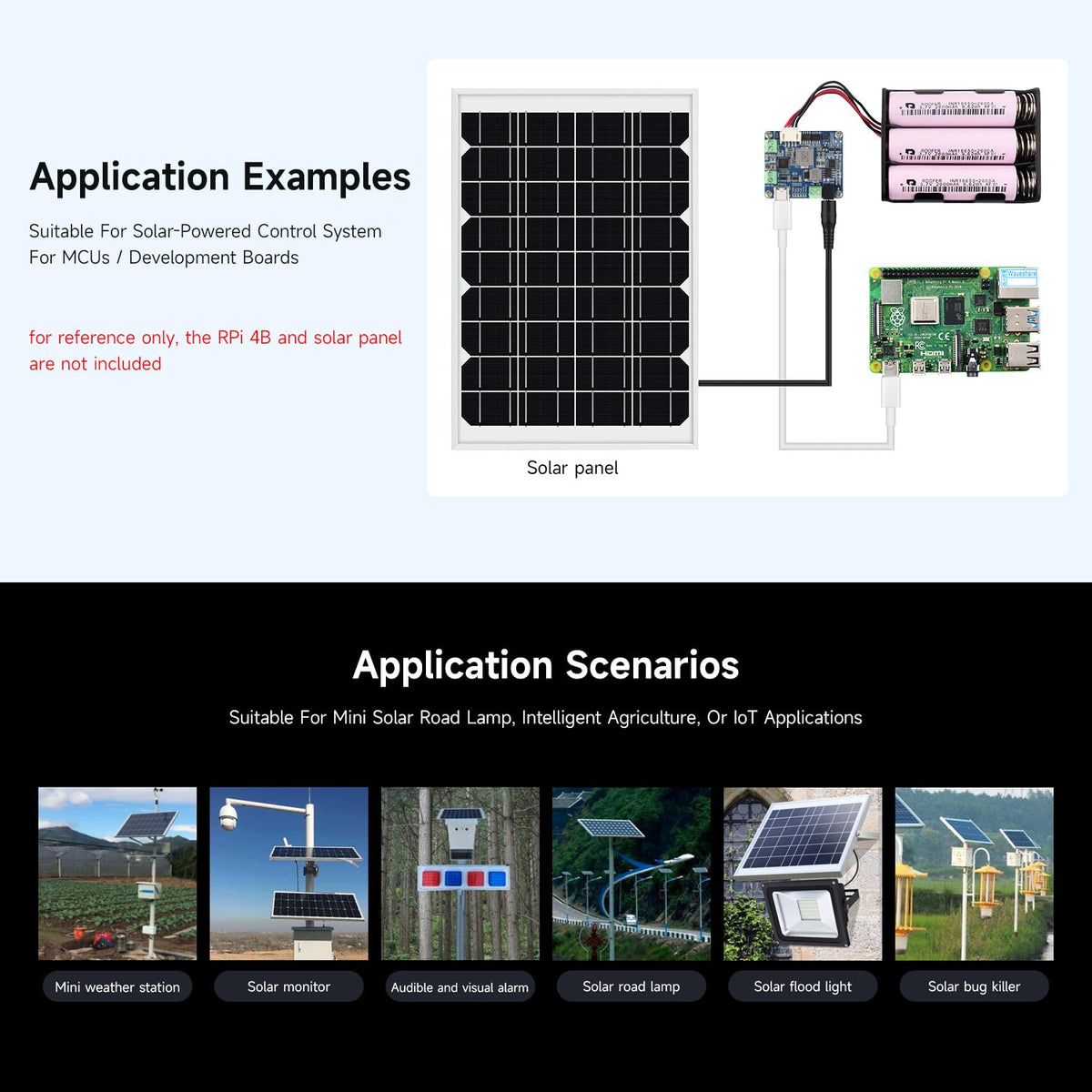

Practical uses and setup ideas

The module excels in small, space‑conscious environments such as hobby projects, educational kits, remote monitoring stations, or compact RV/off‑grid applications. The 5V/3A regulated output is suitable for USB devices, microcontrollers, and peripheral sensors, offering a convenient power rail for experiments or field tests. By pairing a solar panel in the 6–24V range with the Type‑C charger option, you can plan downtime relief for daytime energy transfer while keeping energy reserves available when sun is limited.

• Enhance portable solar kits with a reliable power stage and clear status indicators
• Support educational demonstrations of MPPT and battery management concepts
• Power USB devices or lightweight controllers from a regulated output

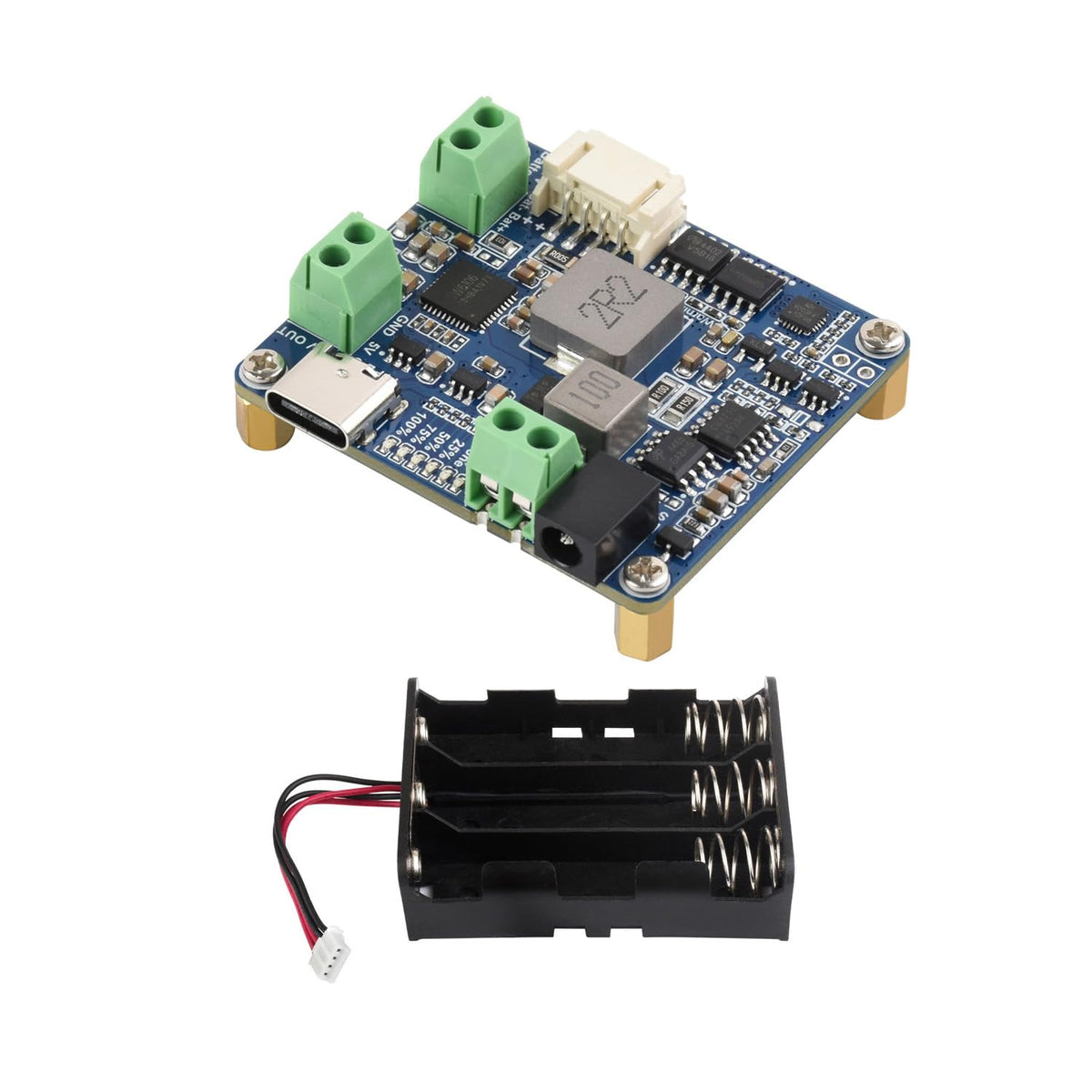

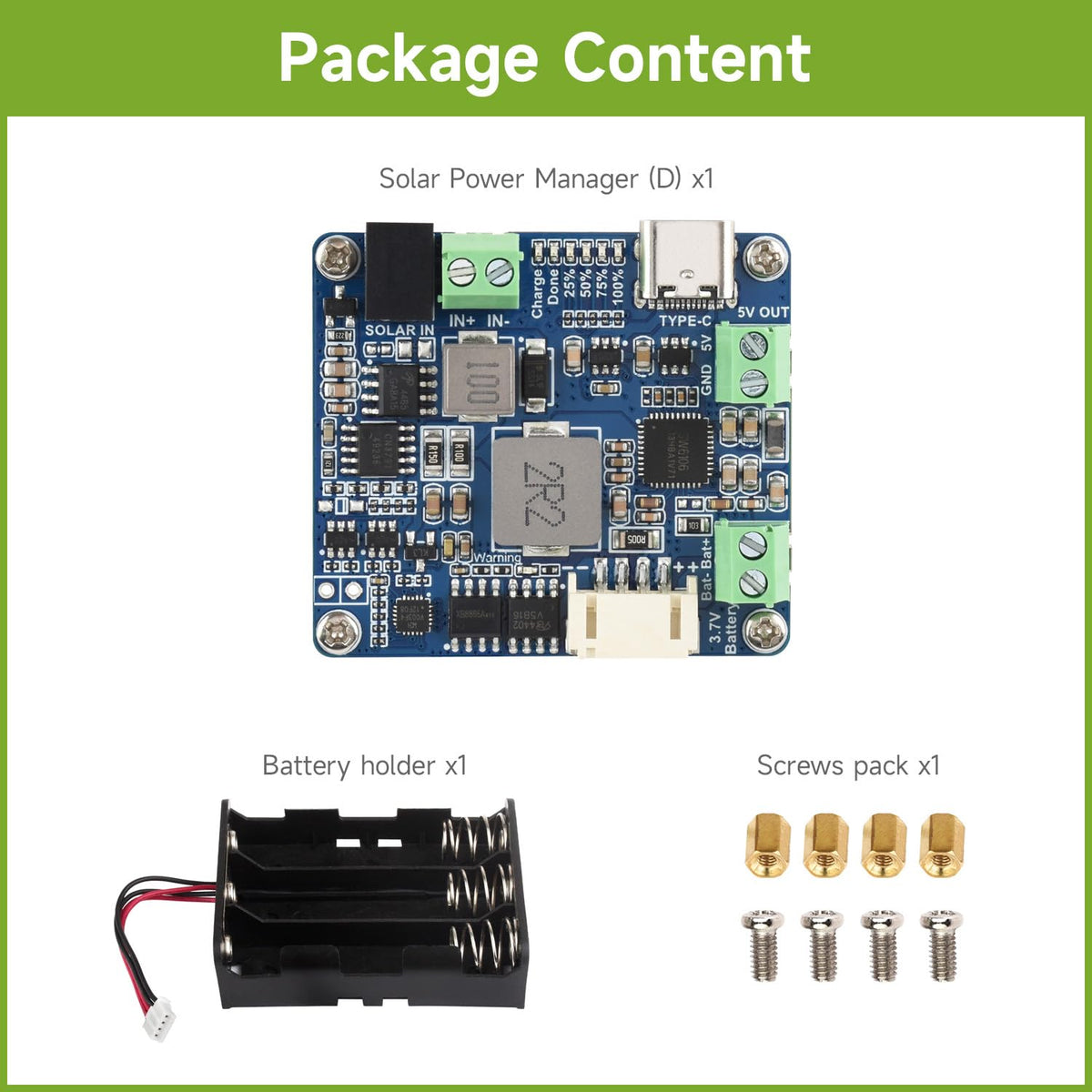

Battery holder and safety notes

The included battery holder supports your chosen cells, but batteries are not part of the package. This arrangement lets you customize capacity and form factor to fit your project. The module’s robust protection circuits help maintain safe operation when charging from solar or Type‑C sources.

In short, Waveshare’s module offers flexible inputs, clear monitoring, and a dependable regulated output—features that can help you design reliable, off‑grid power solutions without overpromising results.
