AgraTronix 08180 Soil Compaction Tester Made in USA SCT

Understanding soil compaction helps field managers, farmers, and researchers tailor practices that support healthy root systems and efficient input use. This in turn may influence crop performance by improving nutrient and water management and reducing the effort needed to till heavy soils.

Why test soil compaction?

Soil density at depth affects how roots penetrate, how water moves through the profile, and how nutrients and agrochemicals are distributed. By measuring compaction at key depths, you gain actionable data to guide field decisions and resource use.

• Root development: looser layers can support deeper, more robust roots
• Water retention and movement: density influences infiltration and holding capacity
• Inputs efficiency: better aeration and placement can enhance the effectiveness of fertilizers, pesticides, and herbicides
• Field operations: understanding compaction can help reduce power needs during tillage, saving time and fuel
• Soil health signals: readings help track changes across seasons

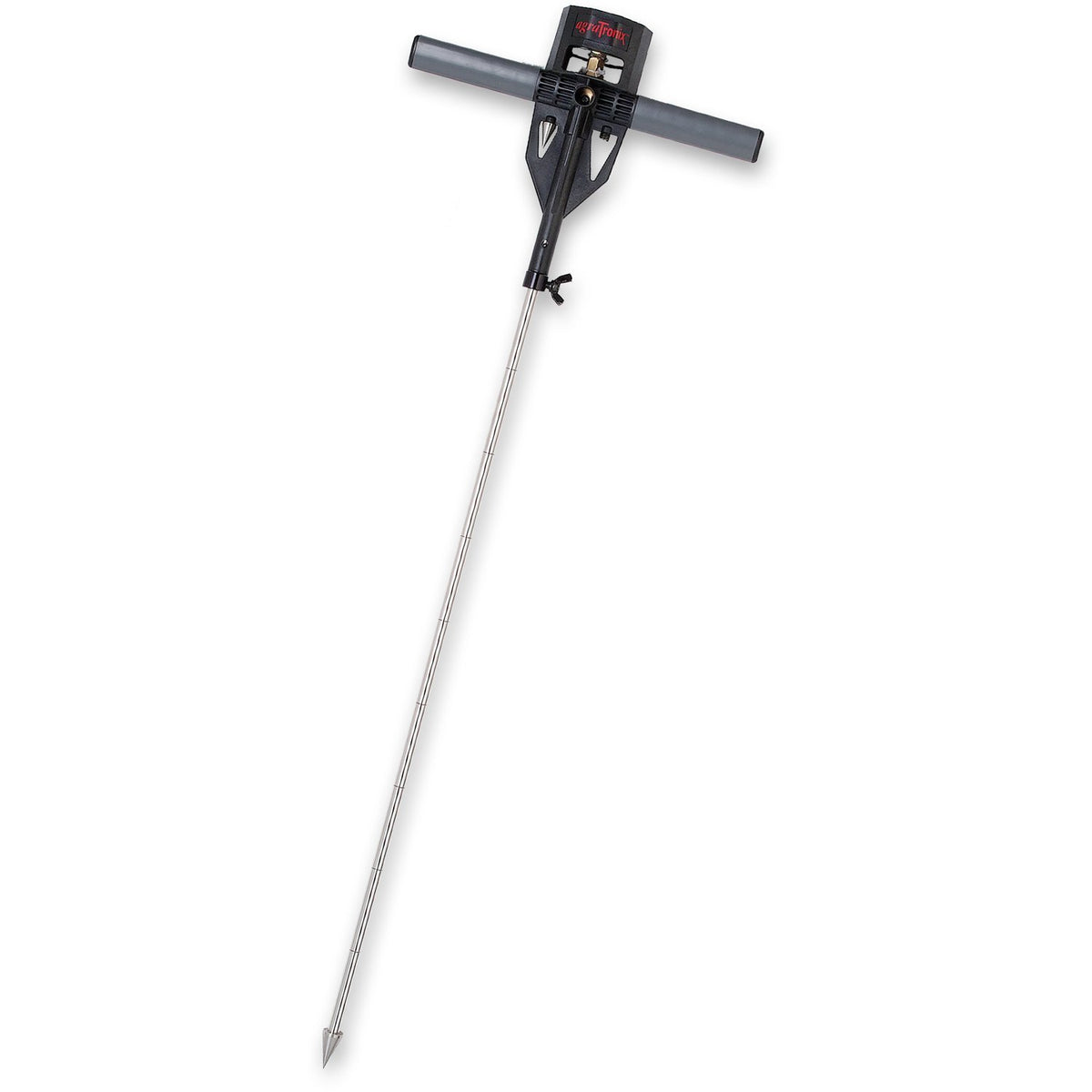

Meet the AgraTronix 08180 tester

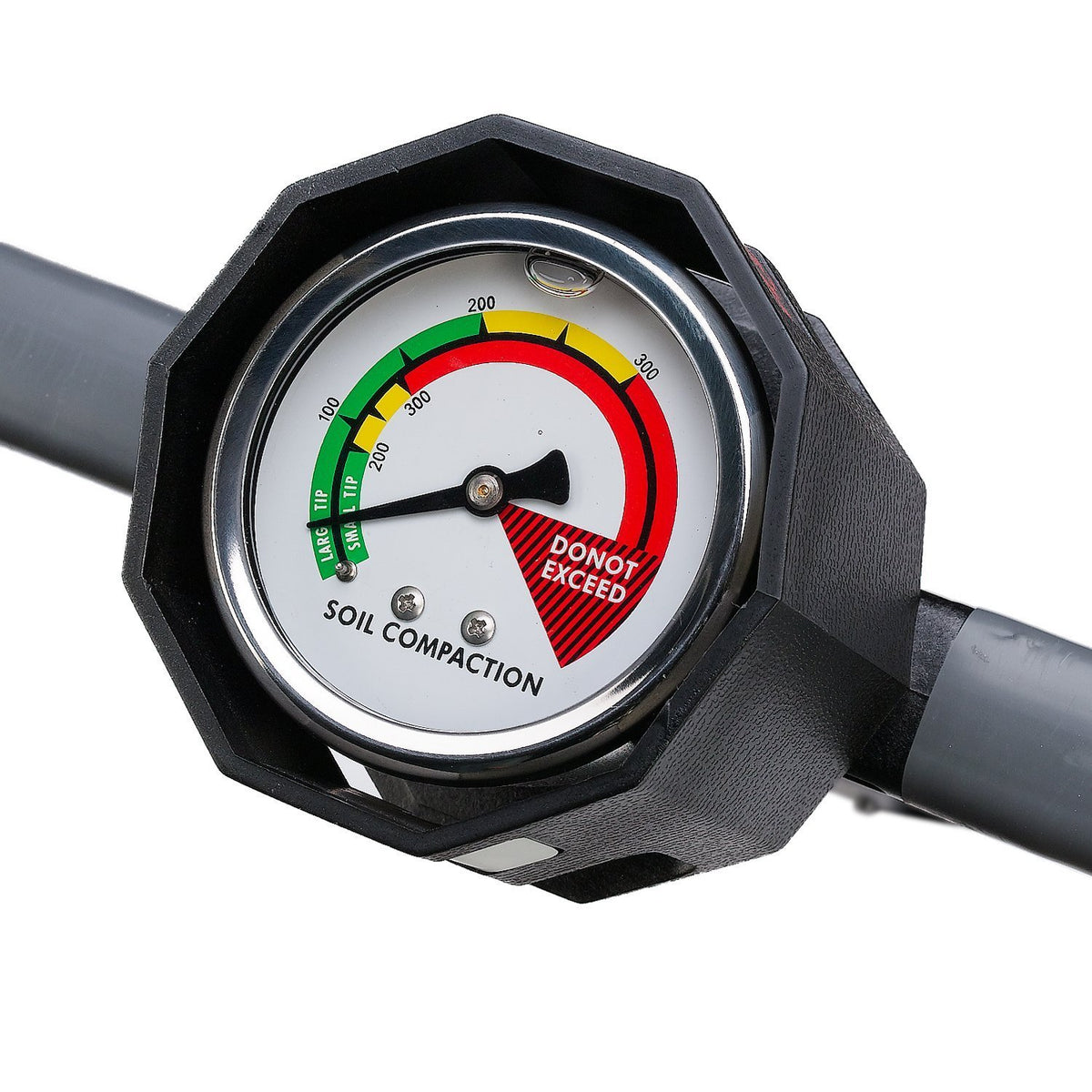

The 24-inch stainless steel rod reaches deep enough to assess compacted layers, while a removable shock collar protects the gauge during transport or storage. A color coded, liquid filled dial makes readings quick to interpret even in rugged field conditions.

• Depth and increments: up to 24 inches, with 3-inch steps
• Color ranges: green 0-200 psi indicates favorable conditions, yellow 200-300 psi signals fair conditions, red 300+ psi points to more compact soil
• Tips included: a 1/2-inch tip for firmer soils and a 3/4-inch tip for softer soils
• Durability and handling: durable molded housing with rubber grip; storage in tester housing
• Convenience: hanger hole with nail for easy wall or bench storage

Real-world use cases

Field crews use this tester during scouting, post application planning, and seasonal soil surveys to gauge compaction risk in high traffic zones, irrigation trenches, or after rainfall events. The data can inform decisions about tillage timing, equipment choice, and input placement.

Lead time and availability: the AgraTronix 08180 is available with a 5-7 business day lead time, helping teams plan procurement alongside field schedules.
