Farmer Bob's Parts AIXR11004-VP TeeJet Air Induction XR 110° Flat Spray Tip – 0.4 GPM @ 40 PSI

Overview

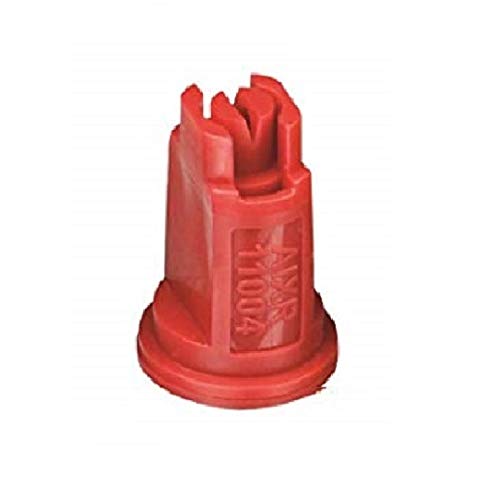

The AIXR11004-VP is an air induction XR flat spray tip designed for Solo Sprayers, built with a robust two‑piece UHMWPE polymer body and VisFlo color‑coding for quick identification on your rig. This combination aims to offer durable performance across a range of field conditions while helping you manage spray pattern and target coverage.

Drift Management and Pattern

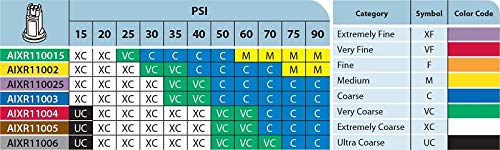

The 110° wide, tapered spray angle works in tandem with air induction technology to create a broad yet controlled spray pattern. Depending on the chemical and operating pressure, you may notice larger air‑filled droplets that can influence how the spray behaves at the margins and near boundaries. The Venturi air aspirator is designed to promote efficient droplet formation, which can support more deliberate application in varying field layouts.

• 110° wide, tapered flat spray zone supports broad coverage with potential drift reduction
• Air induction technology encourages robust droplet formation for consistent performance

Durability and Materials

Constructed from UHMWPE, the nozzle exhibits strong chemical resistance, including acids, and offers notable wear life. The compact size helps prevent tip damage during handling and in tight spaces on the sprayer boom.

• Two‑piece UHMWPE construction for chemical resistance and long wear life
• Compact profile reduces risk of tip damage in crowded spray setups

Setup, Identification, and Maintenance

The VisIFlo color‑coding provides quick, at‑a‑glance identification of nozzle type, while a removable pre‑orifice allows field adjustments to fine‑tune performance. The AIXR11004‑VP is available in seven tip capacities and supports a wide operating pressure range from 15 to 90 psi (1–6 bar).

• VisiFlo color coding speeds type identification and setup
• Removable pre‑orifice for on‑site tuning
• Seven tip capacities across 15–90 psi (1–6 bar)

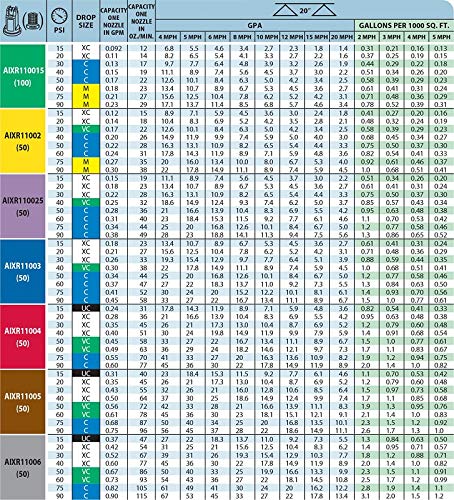

Tip: Always refer to the PSI chart shown in the product pictures to verify compatibility with your Solo Sprayer and the intended chemical load.

Real‑world Use and Considerations

In practice, this nozzle can support a range of spraying tasks while keeping a compact footprint. The combination of 110° coverage and air‑induction technology may help balance field margins with broader area coverage, depending on weather, chemical type, and application rate. The review of your kit and tip selection can help tailor performance to your operational needs.
