Orbit 51240M 1/2-inch Automatic Drain Sprinkler Valve – Frost-Proof Irrigation Protection

Protect Your Irrigation Lines from Freeze Risk

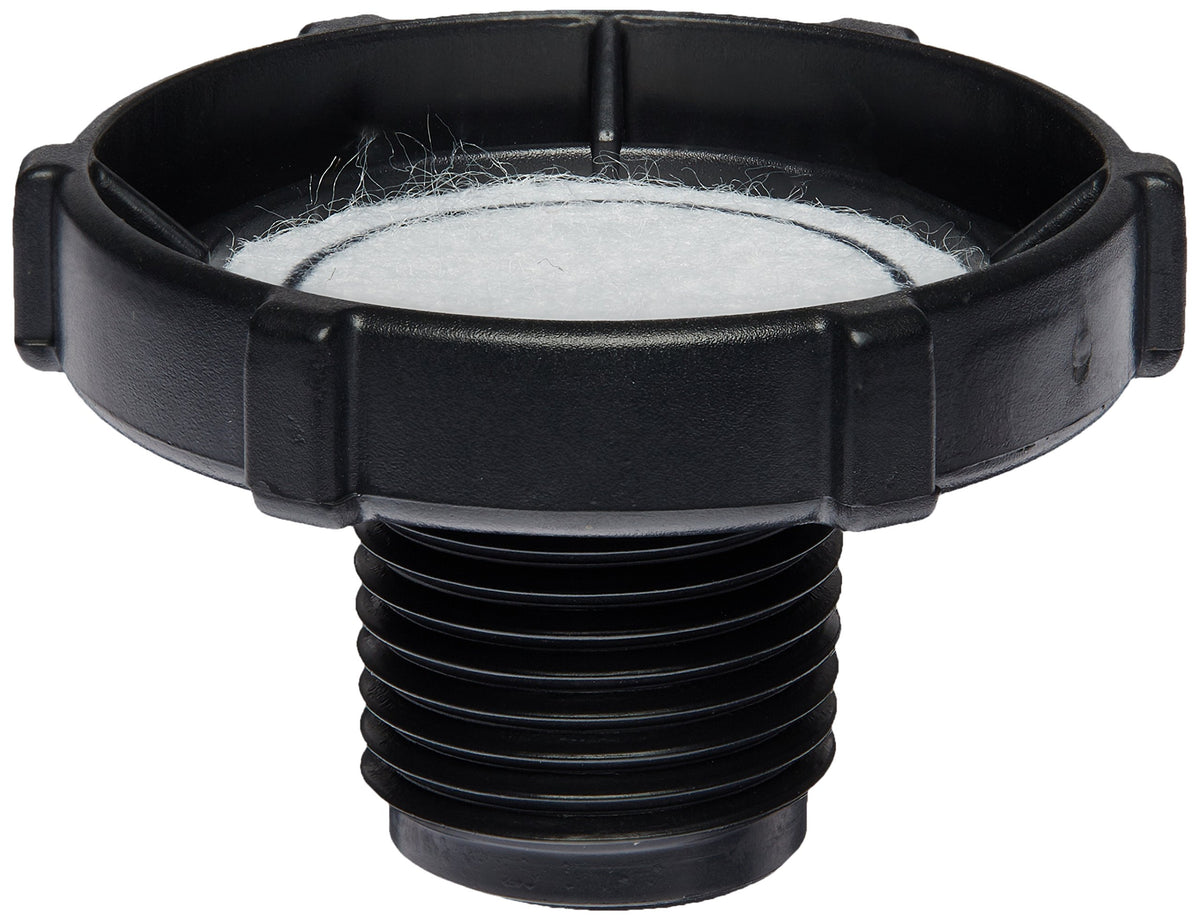

The Orbit 51240M automatic drain valve is designed to help keep outdoor irrigation piping safer in chilly climates. It installs at the low point of a zone, where it can drain the line after each cycle so the water in the run can be kept from freezing. This device works with standard low-point fittings and is built to fit compact spaces, making it a practical addition for seasonal irrigation setups.

In practical terms, the valve seals when a zone is pressurized and opens once the zone turns off. That simple, automated action means the line can stay empty when not in use, which may reduce the need for manual winterization in some setups. Outdoor use with cold water only is recommended to align with design intent and performance expectations.

How It Works in Real-Life Scenarios

During a typical irrigation cycle, the valve maintains a tight seal as the zone runs. When the cycle ends, the valve opens and allows water to drain away, leaving the line in a low-moisture state for the off-season. In longer runs, you may see roughly 4 gallons drain from a 100-foot section, depending on system pressure and temperature. This drainage behavior can be beneficial for areas that experience freezing temperatures, provided the system is configured for winter protection.

Key Benefits at a Glance

• Automatic drain action reduces residual water in the line after each zone cycle.
• Helps keep irrigation runs dry in environments with freezing risk, potentially easing winter prep.
• Compatibility with 1/2-inch or 3/4-inch male pipe threads for low-point installations in tees or elbows.
• Compact, hose-pipe fitting design fits in limited spaces at the zone low point.

What’s Included and How It Ships

• Item Package Dimension: 1.64L x 1.53W x 1.21H inches
• Item Package Weight - 0.019 Pounds
• Item Package Quantity - 1
• Product Type - HOSE PIPE FITTING

Usage Considerations

Use outdoors with cold water only and place the valve where freezing risk is high or where formal winterization is not feasible. The auto drain is designed to complement, not replace, site-specific freeze protection strategies. Always ensure compatibility with your zone layout and local climate requirements.
