Sprinkler Rain Bird R-VAN24-360 Rotary Nozzles (360-degree), 17-24 ft, 5-Pack

Overview

Sprinkler Rain Bird R-VAN24-360 Rotary Nozzles deliver efficient irrigation through rotating streams and a low precipitation rate. This design helps minimize runoff and erosion while offering flexible retrofitting with standard spray heads. When conditions allow, the system can reduce flow by up to 60 percent and improve water efficiency by up to 30 percent, depending on your setup and weather.

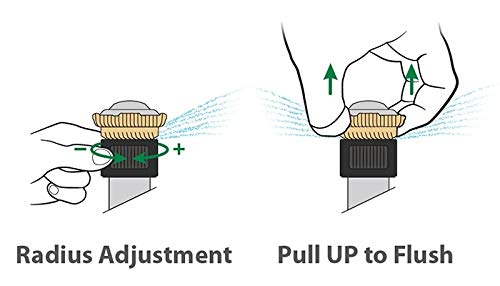

Designed for real world use, these nozzles feature larger droplets that resist wind drift, helping water stay in the target zone. A dedicated manual flush feature keeps the nozzle clear of dirt and debris even in dusty or challenging environments. Radius and spray pattern are adjustable by hand without tools, enabling quick tuning on site.

Key benefits

• Rotating streams provide uniform distribution across the radius range
• Low precipitation rate reduces runoff and evaporation
• Tool free radius adjustment speeds up setup
• Manual flush helps keep nozzles clear in harsh conditions
• Large droplets resist wind drift for more reliable coverage

Real world uses

Ideal for lawns, landscapes, and grid irrigation in residential or commercial settings where water use and coverage balance is important. In windy locations, the thicker streams can help water reach target areas. Retrofit projects often benefit from replacing traditional spray heads with the R-VAN units.

Technical notes and usage tips

• Operating pressure typically 30 to 55 psi, with 45 psi recommended
• Spacing from 17 to 24 ft for a 360 degree arc

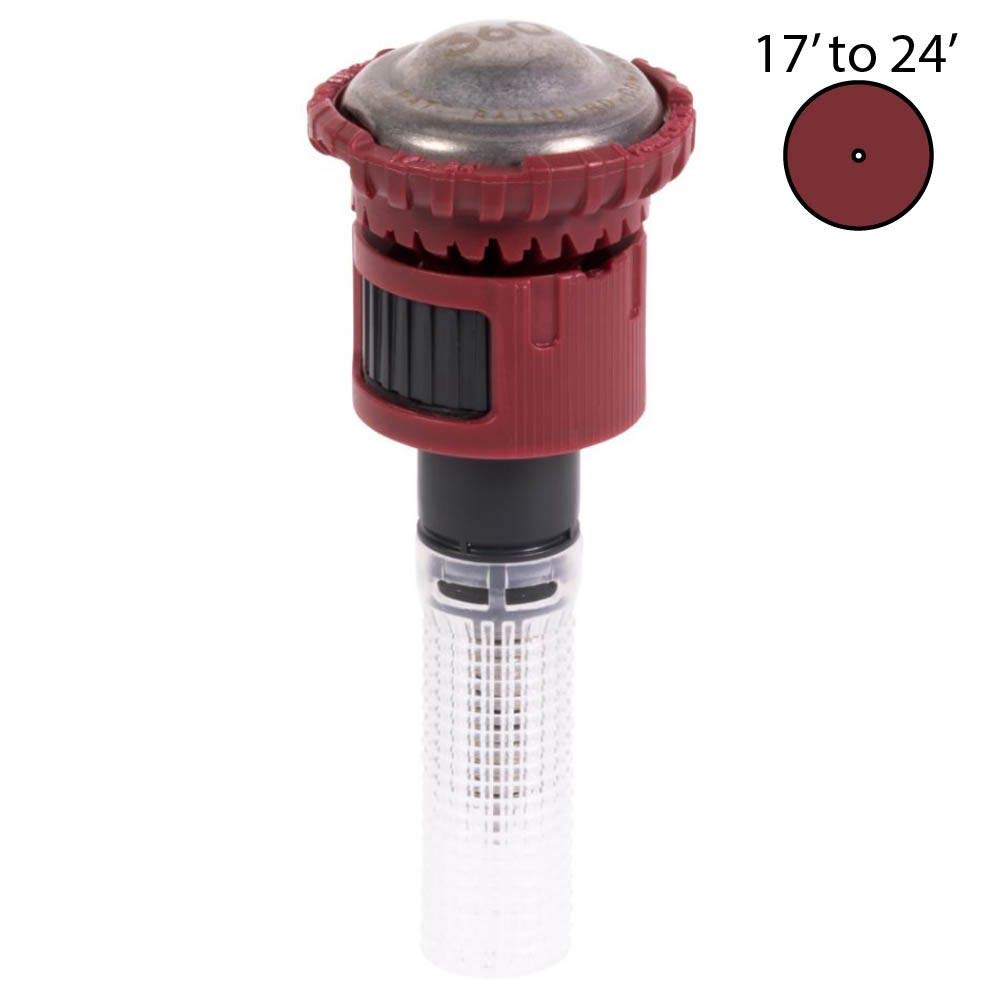

• Radius adjustment is best performed while water is running to ensure accuracy

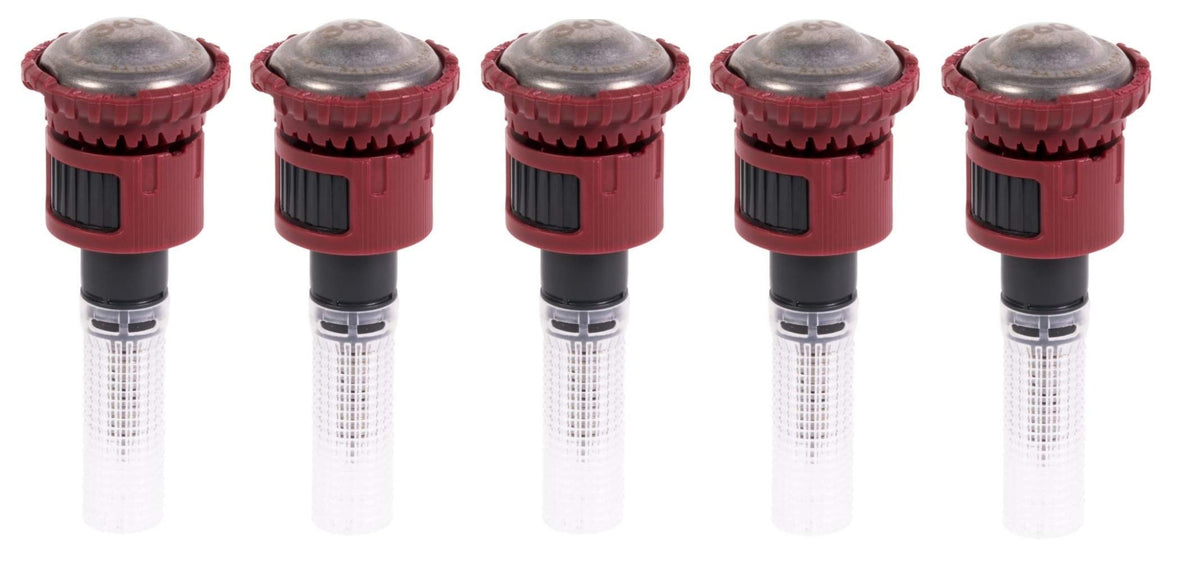

With five nozzles per bag, this set offers a compact upgrade path for existing zones. The R-VAN24-360 line is designed for straightforward tuning, reliable performance in varying weather, and flexible coverage options that support efficient irrigation design.
